SA-40BT
Kod EAN: 4007754429374
Mini stereo amplifier, 2 x 20 W, with Bluetooth interface. Silent operation due to fanless cooling concept Class D amplifier Connection modes: line and Bluetooth 1 stereo line input via RCA jacks L/R 1 stereo line output via RCA jacks L/R Robust me...

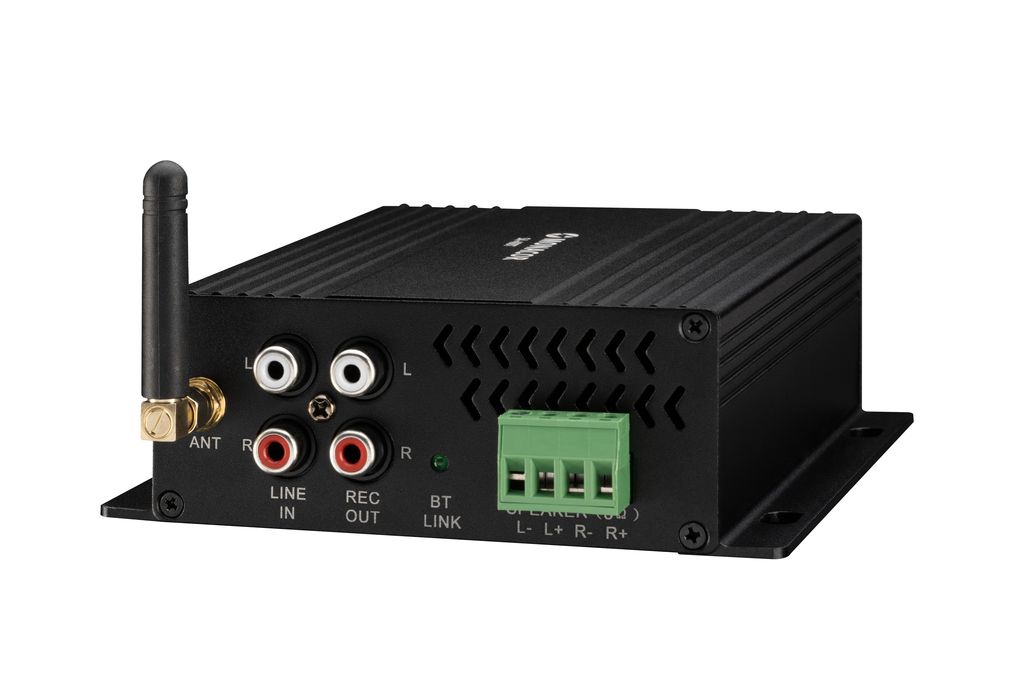

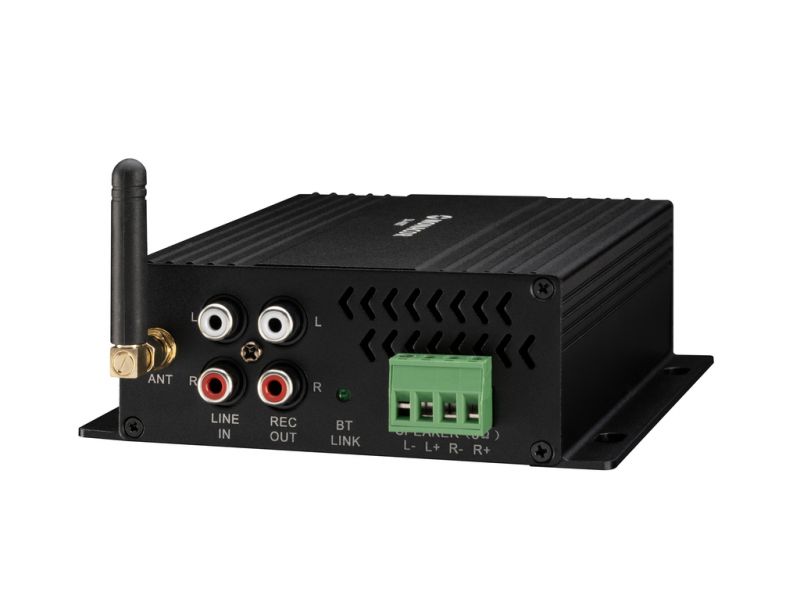

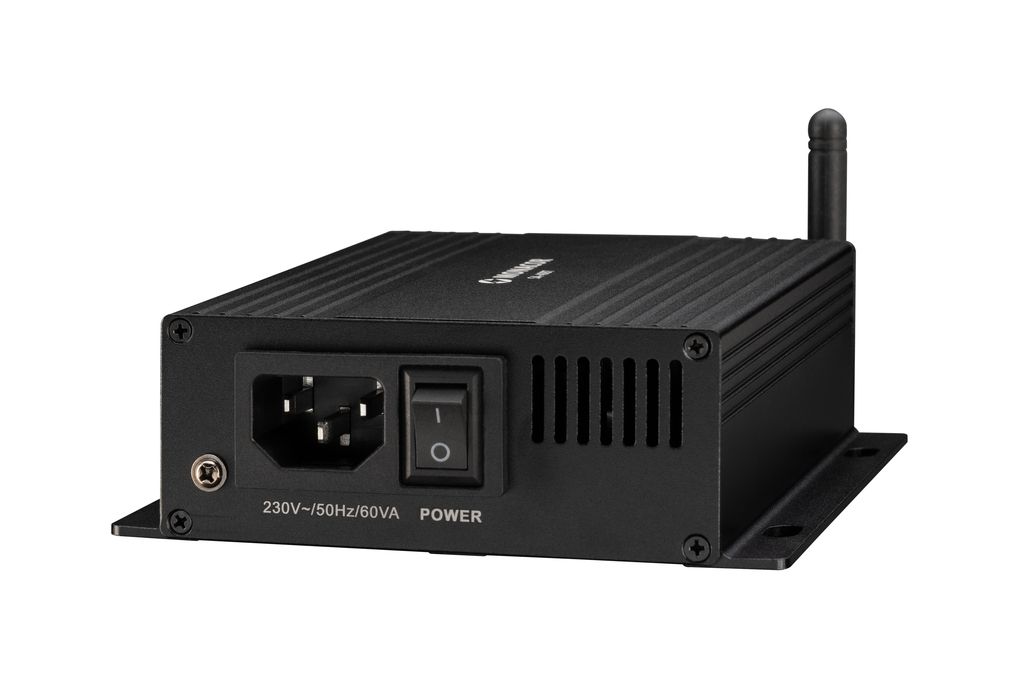

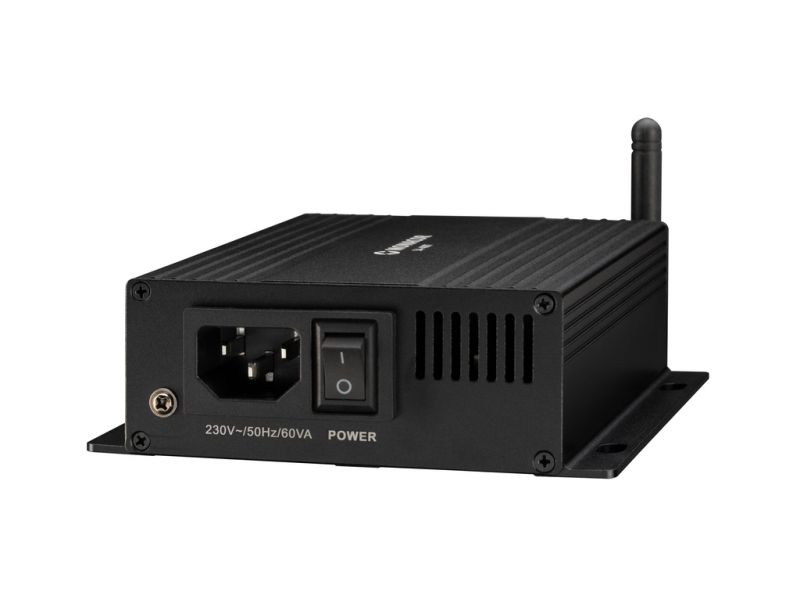

SA-40BT
Mini stereo amplifier, 2 x 20 W,
with Bluetooth interface.
- Silent operation due to fanless cooling concept
- Class D amplifier
- Connection modes: line and Bluetooth
- 1 stereo line input via RCA jacks L/R
- 1 stereo line output via RCA jacks L/R
- Robust metal housing
- Screw holes for mounting are available
- Speaker connection via screw terminal
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Warning and Safety Instructions
The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.
Parametre
| Špičkový výstupný výkon | 2 x 20 W |
| Power rating | 40 W |
| Menovitý výkon pri 8 Ω | 2 x 20 W |
| Kanály | 2 |
| Vstupy | 995 mV/50 kΩ (line in) |
| Frequency range | 20-20,000 Hz |
| Pomer S/N | > 82 dB |
| Crosstalk attenuation | 63 dB |
| THD | < 0.3% |
| Napájanie | ˜230 V/50 Hz/60 VA |
| Mains voltage | ~ 230 V |
| Sieťová frekvencia | 50 Hz |
| Power consumption, operation | 60 VA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 125 mm |
| Výška | 42 mm |
| Depth | 155 mm |
| Hmotnosť | 366 g |
| Connections | 1 x RCA L/R (line in), 1 x RCA L/R (line out), 4 x spring-load. speaker term. (speakers) |
| Packaging dimensions (W x H x L) | 0.155 x 0.07 x 0.265 m |
| Gross weight | 0.652 kg |
| Net weight | 0.380 kg |
