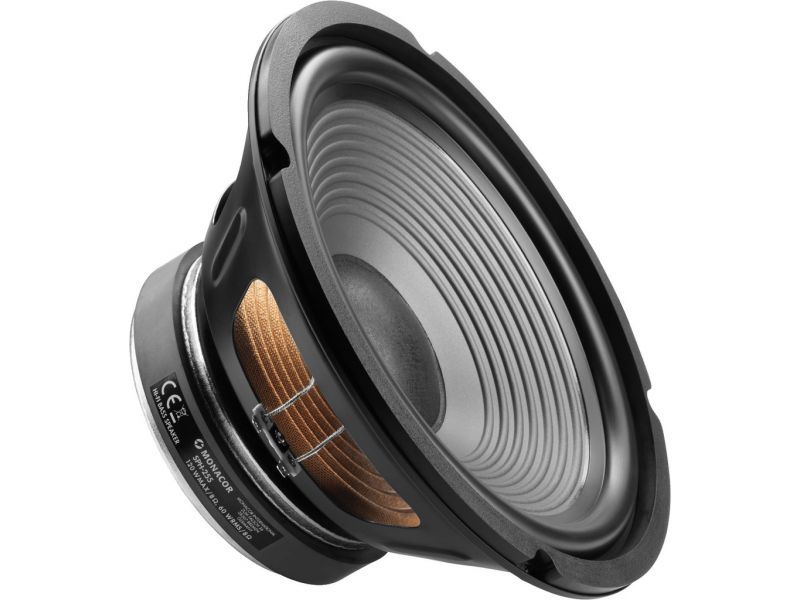

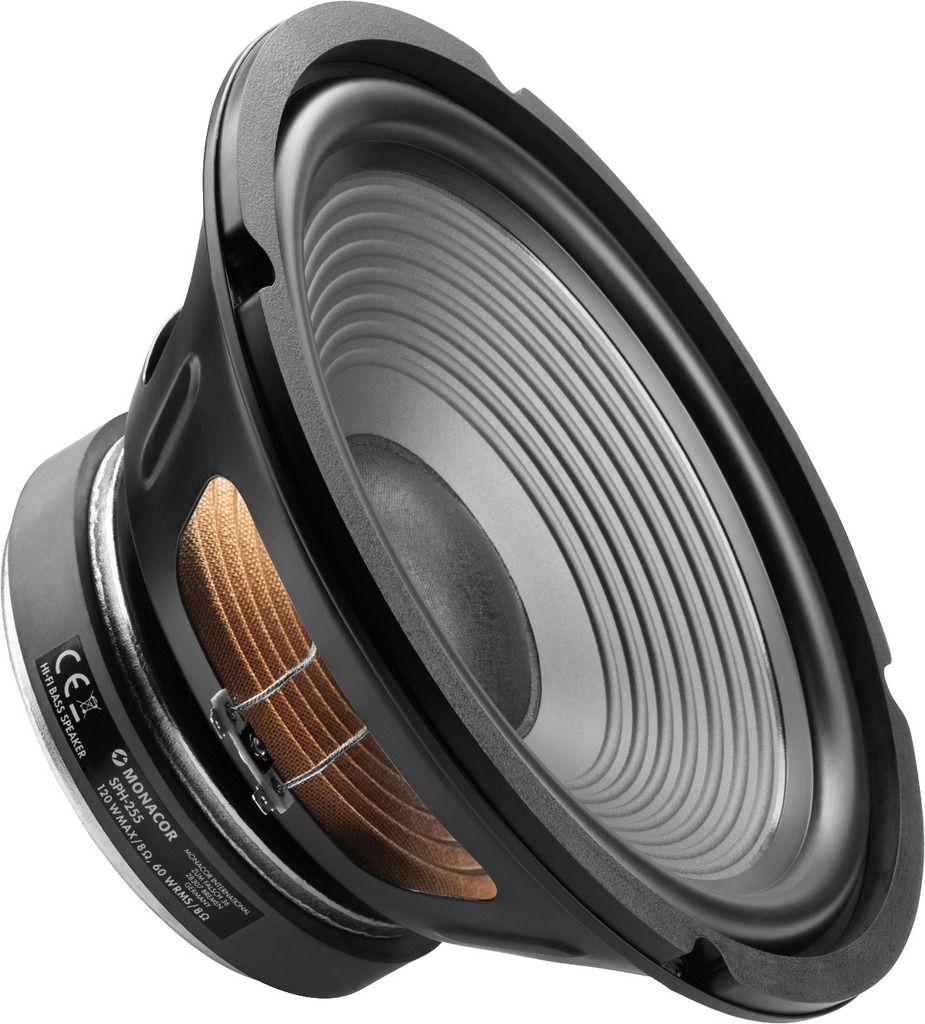

SPH-255

Kod EAN: 4007754025415

Hi-fi bass speaker, 60 W, 8 Ω Multi-purpose speaker of high power capability Voice coil of high power capability Long-term stable rubber surround Powerful bass reproduction of high efficiency

77,00 € brutto

(inkl. 20% DPH)
64,17 € netto




SPH-255

Hi-fi bass speaker, 60 W, 8 Ω
  • Multi-purpose speaker of high power capability
  • Voice coil of high power capability
  • Long-term stable rubber surround
  • Powerful bass reproduction of high efficiency

Parametre

Impedance (Z) 8 Ω
Frequency range f3-3,000 Hz
Resonant frequency (fs) 23 Hz
Power rating (RMS) 60 W
Peak music power output (MAX) 120 W
Sensitivity 91 dB/W/m
Suspension compl. (Cms) 1.19 mm/N
Moving mass (Mms) 42 g
Mech. Q factor (Qms) 2.86
Electr. Q factor (Qes) 0.26
Total Q factor (Qts) 0.25
Equivalent volume (Vas) 205 l
DC resistance (Re) 6.1 Ω
Force factor (BxL) 11.70 Tm
Voice coil induct. (Le) 1.5 mH
Voice coil diameter Ø 50 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 4.5 mm
Eff. cone area (Sd) 350 cm2
Magnet weight 1.1 kg
Magnet diameter Ø 140 mm
Mounting cutout Ø 235 mm
Mounting depth 118 mm
Dimensions Ø 257 mm x 128 mm
Outside diameter Ø 257 mm
Width Ø 257 mm
Depth 128 mm
Admiss. ambient temp. 0-40 °C
Weight 3.73 kg
Packing unit 1
Type of speaker 10"
