TR-20-EN

Kod EAN: 4007754429626

Weatherproof horn speaker with EN 54-24 certification 100 V transmission technology 100 V transformer with 20/10/5 W power taps Integrated high-pass filter for sound and stability optimisation For music and speech applications IP66 certified Light...

viac

111,97 € brutto

(inkl. 23% DPH)
91,03 € netto

Staň sa partnerom
Kúp teraz

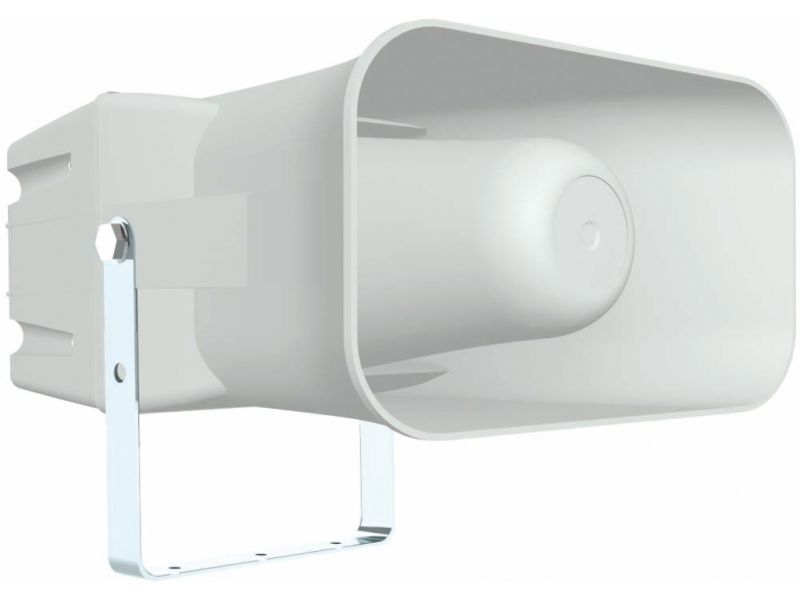

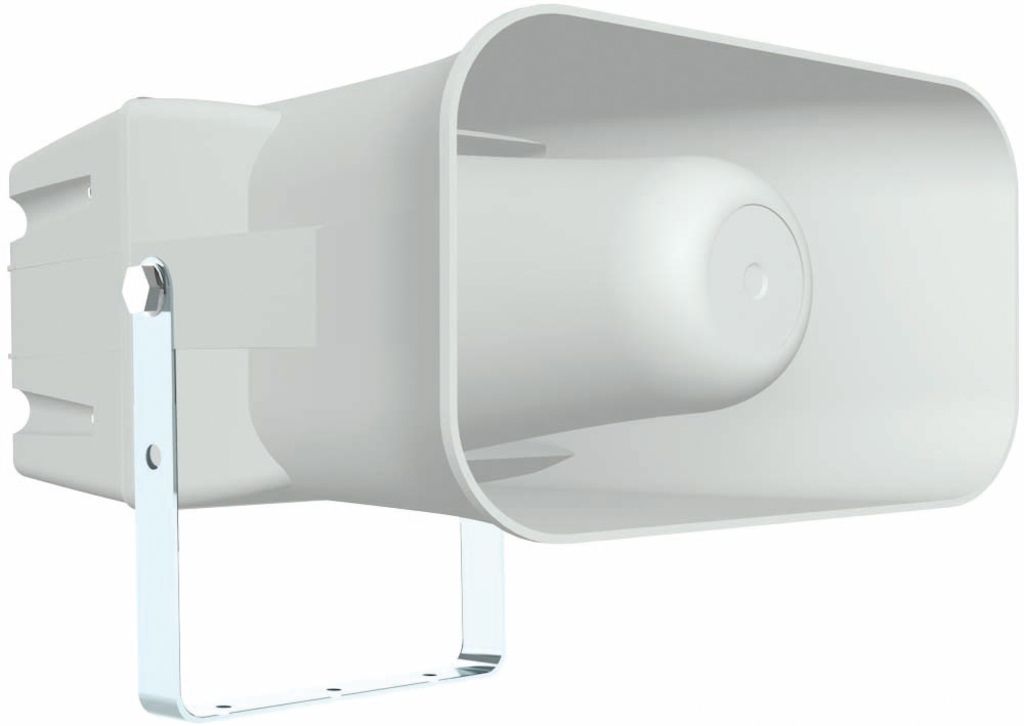

TR-20-EN

Weatherproof horn speaker
with EN 54-24 certification
  • 100 V transmission technology
  • 100 V transformer with 20/10/5 W power taps
  • Integrated high-pass filter for sound and stability optimisation
  • For music and speech applications
  • IP66 certified
  • Light grey ABS housing (self-extinguishing, complies with UL94V0 standard)
  • Cable feed via PG cable gland
  • Mounting bracket included
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametre

Active/passive passive
Transmission technology 100 V
Total power rating 20 W
Power rating (RMS) 20/10/5 W
Frequency range 350-10,000 Hz
Počet reproduktorov 1
SPL 110 dB (1 W/1 m) 86 dB (EN, 1 W/4 m)
Maximálny menovitý SPL 121 dB (1 m) 101.5 dB (EN, 4 m)
Radiation angle/beam angle H180°/V180° (500 Hz) H180°/V180° (1 kHz) H79°/V119° (2 kHz) H30°/V44° (4 kHz)
Uhol vyžarovania, horizontálny 180° (500 Hz) 180° (1 kHz) 79° (2 kHz) 30° (4 kHz)
Uhol vyžarovania, vertikálny 180° (500 Hz) 180° (1 kHz) 119° (2 kHz) 44° (4 kHz)
Features EN 54-24 certification
Housing material ABS
Colour light grey, RAL 7035
Mounting device mounting bracket
Protection class IP66
Admiss. ambient temp. -40 °C to +80 °C
Dimensions 180 x 120 x 230 mm
Width 180 mm
Výška 120 mm
Depth 230 mm
Hmotnosť 2.1 kg
Vstupy M20 cable gland
Ďalšie funkcie weatherproof
Packaging dimensions (W x H x L) 0.18 x 0.18 x 0.267 m
Gross weight 2.2 kg
Net weight 2.1 kg

Na stiahnutie

Produktová karta TR-20-EN
