PA-6010Z

Kod EAN: 4007754275582

10-zone mono PA mixing amplifier 1 x 600 W 10 zones, can be controlled individually 3 inputs microphone/line via comb. jacks 2 inputs stereo line via RCA jacks Additional 60 W amplifier for separate announcements via zone paging microphone PA-2400RC...

viac

1 560,00 € brutto

(inkl. 20% DPH)
1 300,00 € netto

Staň sa partnerom
Kúp teraz


PA-6010Z

10-zone mono PA mixing amplifier
  • 1 x 600 W
  • 10 zones, can be controlled individually
  • 3 inputs microphone/line via comb. jacks
  • 2 inputs stereo line via RCA jacks
  • Additional 60 W amplifier for separate announcements via zone paging microphone PA-2400RC, if not more than 2 zones are selected
  • Bass, treble and master controls, LEDs for indicating signal/clip, regulated fan
  • Insertions for various functions are available at option
  • 15 V phantom power for electret microphones
  • Connection for up to 32 zone paging microphones PA-2400RC
  • Connection for up to 3 push-to-talk microphones PA-4300PTT
  • Alarm announcement with insertion PA-1120DMT (available at option)
  • Mains operation and 24 V emergency power operation
  • Removable mounting brackets

Parametre

Peak output power 600 W
Power rating 600 W
Power rating at 4 Ω 600 W
Power rating at 100 V 600 W
Channels 5
Zones 10
Inputs 2.5 mV/5 kΩ, 0.3 V/5 kΩ (mic/line 1-3), 0.3 V/15 kΩ (line 4-5), 0.775 V/100 kΩ (preamplifier)
Frequency range 55-16,000 Hz
Equalizer bass ±10 dB/100 Hz
Equalizer treble ±10 dB/10 kHz
S/N ratio > 70 dB (mic), > 80 dB (line)
THD < 1%
Phantom power 15 V
Power supply ˜ 230 V/50 Hz/1,700 VA, DC 24 V/50 A
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 1,700 VA
Operating voltage (possible alternative) DC 24 V
Power supply (possible alternative) DC 50 A
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 133 mm
Depth 352 mm
Rack units, RU 3
Weight 22 kg

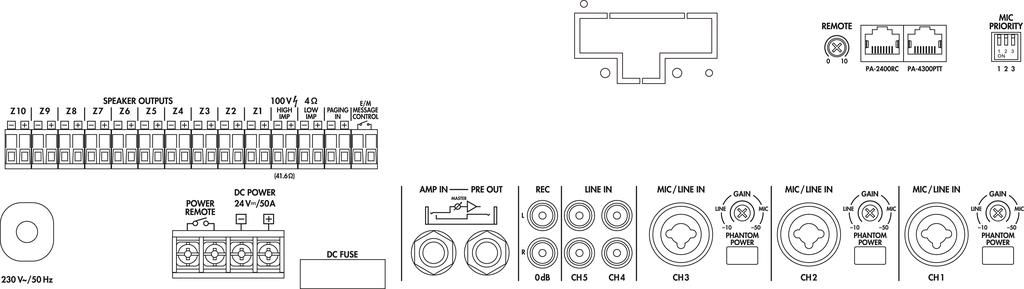

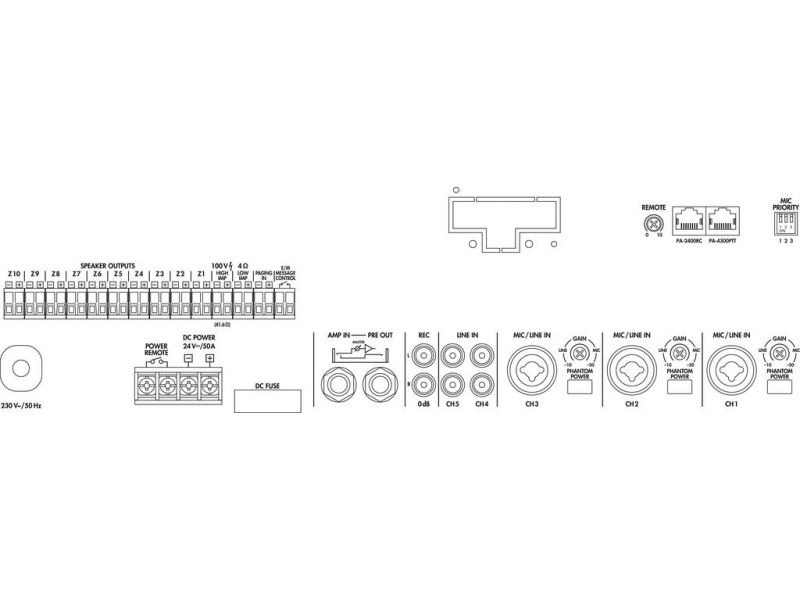

Connections 3 x comb. 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), 1 x 6.3 mm jack (preamplifier input), 1 x RJ45 (push-to-talk mic), 1 x RJ45 (zone paging mic), 1 x RCA L/R (record output), 1 x 6.3 mm jack (preamplifier output), screw contacts (chime button), screw contacts (speakers)
Packaging dimensions (W x H x L) 0.54 x 0.22 x 0.48 m
Gross weight 23.8 kg
Net weight 21.97 kg

Na stiahnutie

Produktová karta PA-6010Z konformitaetserklaerung-ukca konformitaetserklaerung-ce pdf-zeichnung Návod na obsluhu
