ETS-515TW/BK
Kod EAN: 4007754428025
PA column speaker 100 V line technology or 8 Ω operation 2-way version (with additional integrated tweeter for a clearly improved sound) Integrated crossover network 6-step power selector switch with 8 Ω selection 2 x 6 mm threaded bushing Plastic ca...

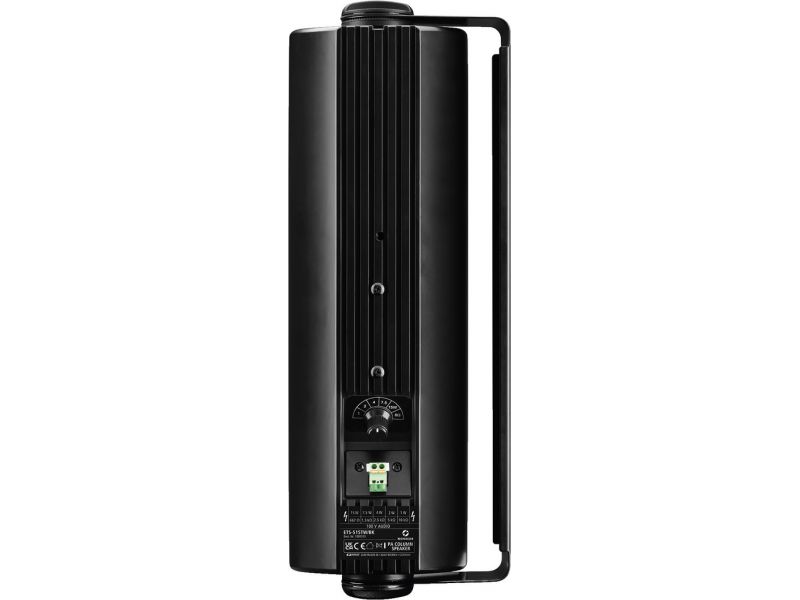

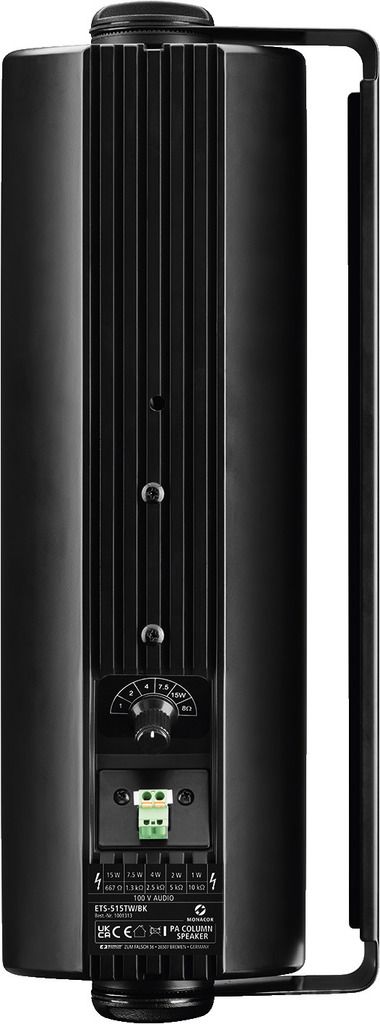

ETS-515TW/BK
PA column speaker
- 100 V line technology or 8 Ω operation
- 2-way version (with additional integrated tweeter for a clearly improved sound)
- Integrated crossover network
- 6-step power selector switch with 8 Ω selection
- 2 x 6 mm threaded bushing
- Plastic cabinet and speaker grille cloth
- Supplied with end-to-end mounting bracket
- Terminal strip connection
Parametre
| Active/passive | passive |
| Transmission technology | 100 V or low-impedance |
| Total power rating | 30 W |
| Power rating (RMS) | 15/7.5/4/2/1 W (100 V) 15 W (8 Ω) |
| Impedance | 8 Ω |
| Frequency range | 90-20,000 Hz |
| System | 2-way |
| Number of speakers | 2+1 |
| Speaker size | 10 cm (4") |
| SPL | 87 dB/W/m |
| Radiation angle/beam angle | H: 140°/V: 50° |
| Radiation angle, horizontal | 140° |
| Radiation angle, vertical | 50° |
| Housing material | plastic |
| Colour | black |
| Mounting device | mounting bracket, end-to-end |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 128 x 385 x 140 mm |
| Width | 128 mm |
| Height | 385 mm |
| Depth | 140 mm |
| Weight | 2.8 kg |
| Inputs | plug-in screw terminals |
| Packaging dimensions (W x H x L) | 0.18 x 0.18 x 0.51 m |
| Gross weight | 3.1 kg |
| Net weight | 2.84 kg |
