WDW-2000-EN-ABDS
Kod EAN: 4007754429589
PA A/B wall and ceiling speaker with EN 54-24 certification for evacuation systems with A/B speaker distribution in accordance with EN 60849 and DIN VDE 0833-4. 100 V transmission technology via audio transformer with 2 x 3 power taps Full range sp...
70,12 € brutto
(inkl. 23% DPH)
57,01 € netto

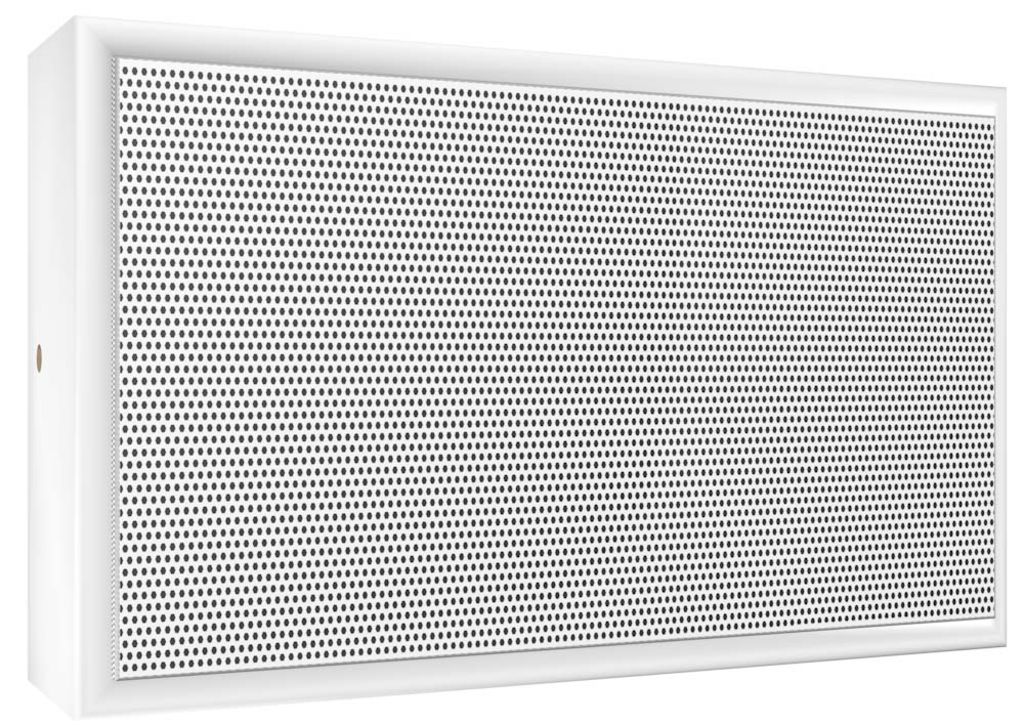

WDW-2000-EN-ABDS
PA A/B wall and ceiling speaker
with EN 54-24 certification for evacuation systems with A/B speaker distribution in accordance with EN 60849 and DIN VDE 0833-4.
- 100 V transmission technology via audio transformer with 2 x 3 power taps
- Full range speaker system (13 cm) with dual voice coil for speech and music reproduction
- Moisture-proof speaker cone
- Wooden housing with metal protective grille
- Easy wall mounting using the supplied aluminium bracket and installation material
- Ball-proof according to DIN 18 032, part 3
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametre
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 2 x 6 W |
| Power rating (RMS) | 2 x 6/3/1.5 W |
| Frequency range | 80-19,000 Hz |
| Počet reproduktorov | 1 |
| Speaker size | 13 cm (5") |
| SPL | 93 dB (1 W/1 m) 77 dB (EN, 1 W/4 m) |
| Maximálny menovitý SPL | 10 dB (1 m) 86 dB (EN, 4 m) |
| Radiation angle/beam angle | H180°/V180° (500 Hz) H80°/V88° (1 kHz) H131°/V126° (2 kHz) H77°/V69° (4 kHz) |
| Uhol vyžarovania, horizontálny | 180° (500 Hz) 80° (1 kHz) 131° (2 kHz) 77° (4 kHz) |
| Uhol vyžarovania, vertikálny | 180° (500 Hz) 88° (1 kHz) 126° (2 kHz) 69° (4 kHz) |
| Features | EN 54-24 certification |
| Housing material | wood |
| Colour | white, RAL 9010 |
| Mounting device | aluminium bracket |
| Protected against ball rebound | yes |
| Dimensions | 265 x 165 x 88 mm |
| Width | 265 mm |
| Výška | 165 mm |
| Depth | 88 mm |
| Hmotnosť | 1.7 kg |
| Vstupy | WAGO clamps |
| Packaging dimensions (W x H x L) | 0.268 x 0.168 x 0.092 m |
| Gross weight | 2 kg |
| Net weight | 1.9 kg |
