PA-4125DX/DT
Kod EAN: 4007754428018
Dante® is a network protocol based on layer 3 IP technology which provides a low-latency, high-precision and cost-effective solution for point-to-point audio connections. Dante® technology can be used for the transmission of high-precision clock signal...
1 668,00 € brutto
(inkl. 20% DPH)
1 390,00 € netto
PA-4125DX/DT
Dante® is a network protocol based on layer 3 IP technology which provides a low-latency, high-precision and cost-effective solution for point-to-point audio connections. Dante® technology can be used for the transmission of high-precision clock signals and audio signals. It allows for complex ethernet routing to ensure a perfect sound effect, to solve problems resulting from complex cabling known from traditional audio transmissions and to reduce costs. There is no special configuration required for an integration into an existing network.

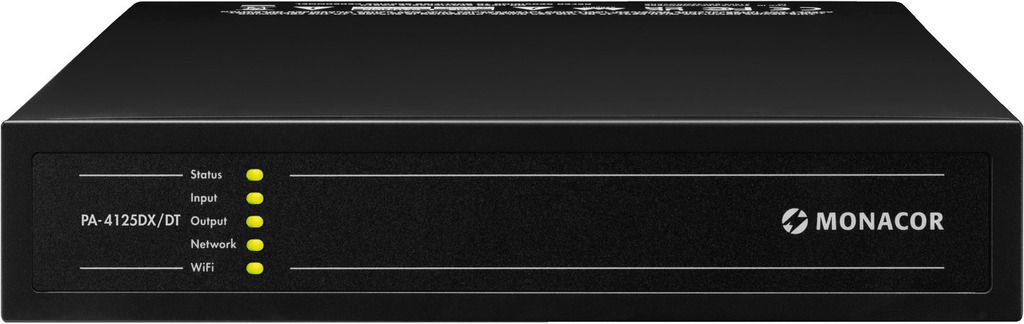

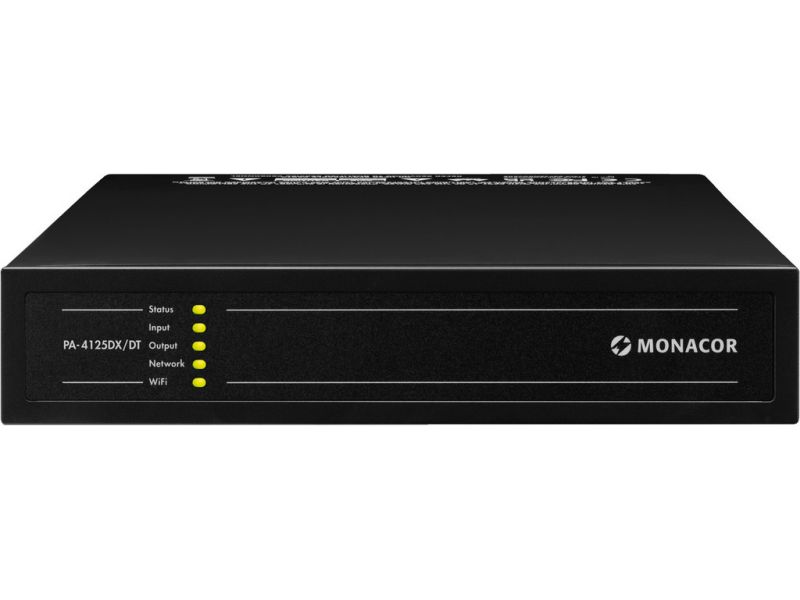

Dante®-enabled 4-zone multifunctional mixing amplifier
class D technology with DSP and professional features for general multi-room PA applications.

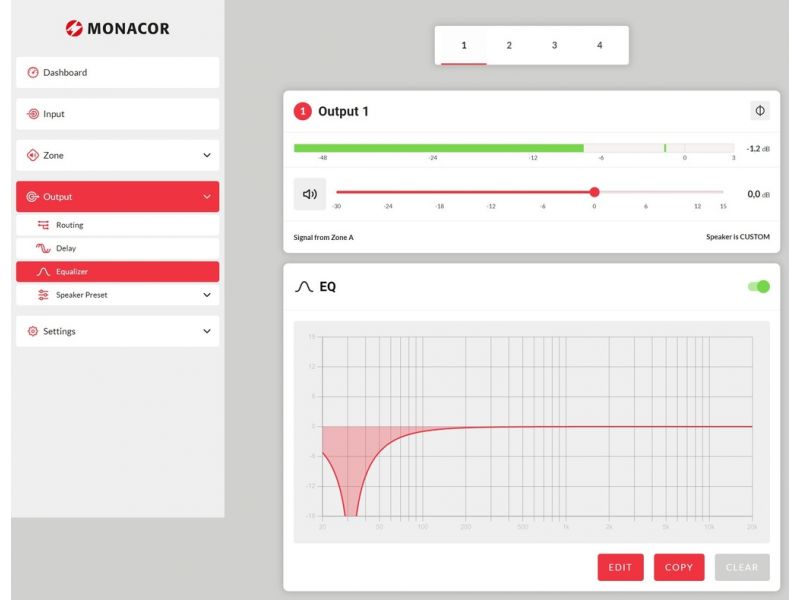

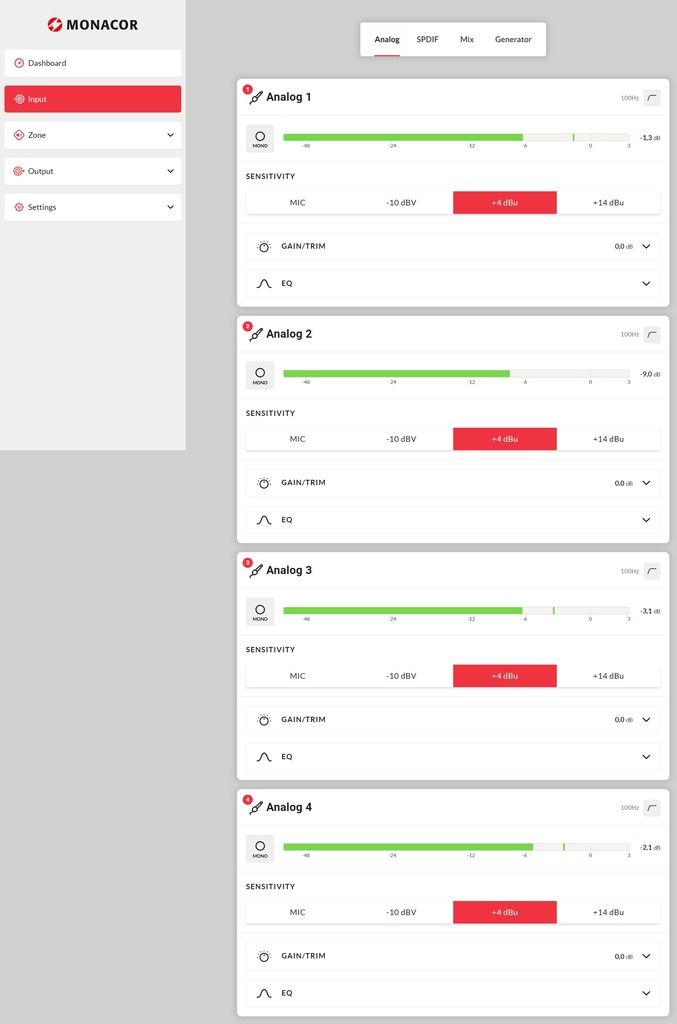

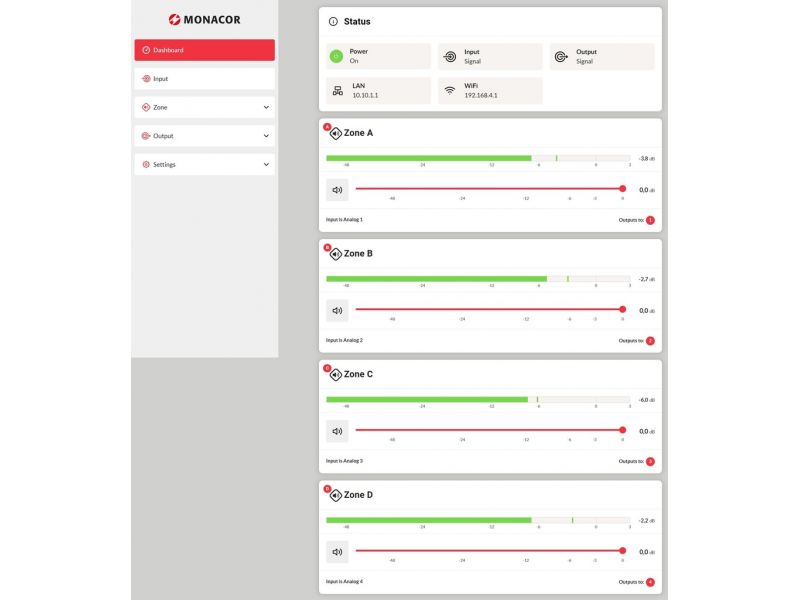

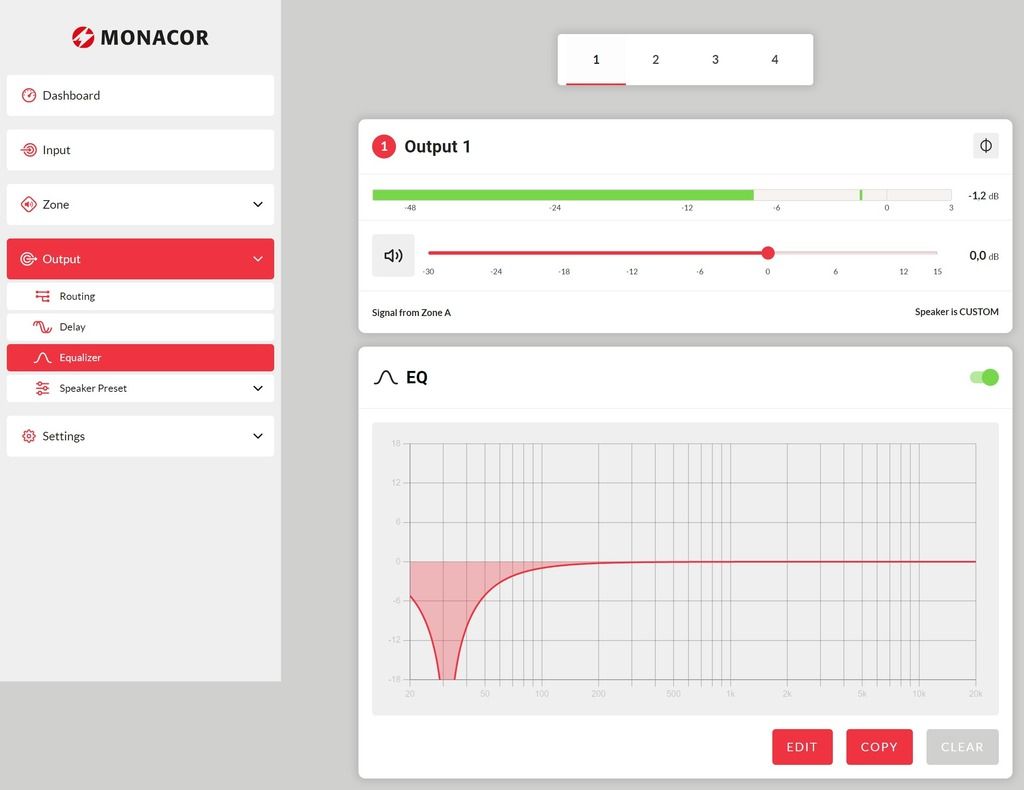

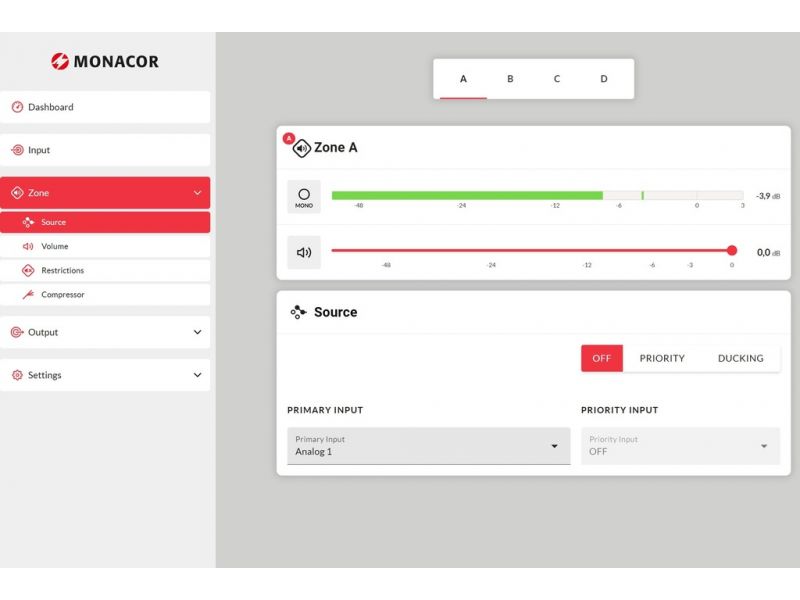

Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).
Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).
- Dante® interface (4 transmission channels, 4 receiver channels)
- 4 x 125 W per zone (4/8 Ω) or 2 x 250 W (100 V)
- 100 V or 4/8 Ω operation
- 4 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
- 1 digital input/output via S/PDIF RCA jacks
- 4 outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
- GPIO interface for remote volume control and standby
- Network connection via LAN or WLAN
- Convenient operation and configuration via user interface HTML5

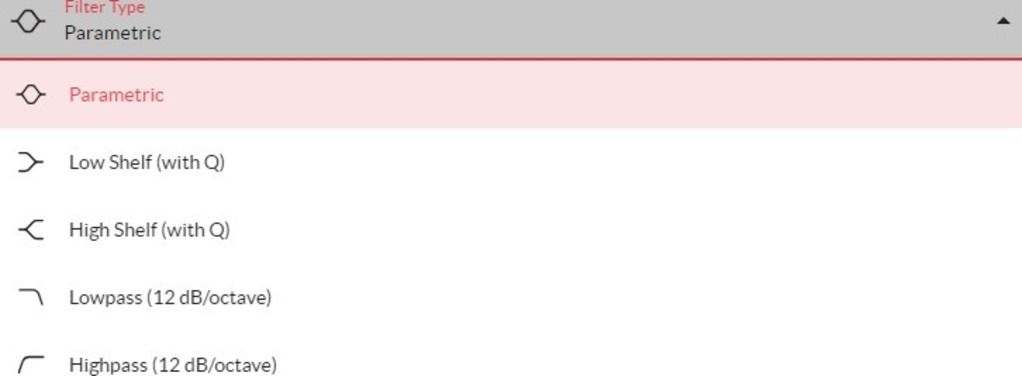

- High-pass/low-pass filter with various filters
- Parametric equalizer
- Output with separate FIR filters
- Speaker matching: 10 ms
- Switchable output phase
- Adjustable compressor/limiter
- Adjustable delay
- Mix inputs
- Talkover with priority routing
- Built-in sine wave noise generator

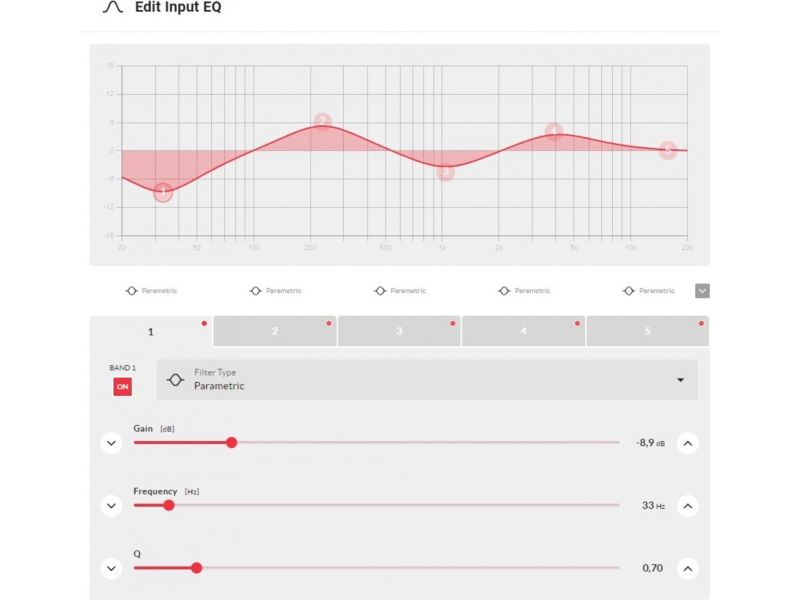

- Parametric 5-band equalizer for input
- Protected against short circuit, DC voltage overload, undervoltage, excess temperature and overload
System requirements Dante®: Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.1
The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.
Parametre
| Peak output power | 500 W |
| Power rating | 500 W |
| Power rating at 4 Ω | 4 x 125 W |
| Power rating at 8 Ω | 4 x 125 W |
| Power rating at 100 V | 2 x 250 W |
| Channels | 5 |
| Zones | 4 |
| Inputs | 1.2 V, bal. (line), 1.9 mV, bal. (mic) |
| Integrated limiter | yes |
| Equalizer bass | via DSP |
| Equalizer midrange | via DSP |
| Equalizer treble | via DSP |
| S/N ratio | > 106 dB |
| THD | < 0.05% |
| Power supply | ˜ 100-240 V/50-60 Hz/150 W |
| Mains voltage | ~ 100-240 V |
| Mains frequency | 50-60 Hz |
| Power consumption, operation | 150 W, 1/8 output power |
| Power consumption, standby | < 0.5 W |
| Admiss. ambient temp. | 0-40 °C |
| Width | 220 mm |
| Height | 44 mm |
| Depth | 320 mm |
| Rack units, RU | 1 |
| Weight | 1.95 kg |
| Connections | 4 x RCA line plug-in screw terminals (mic/line) 2 x RCA (digital in/out) plug-in screw terminals GPIO plug-in screw terminals speakers 1 x RJ45 network connection 1 x RJ45 Dante® |
| Packaging dimensions (W x H x L) | 0.3 x 0.09 x 0.5 m |
| Gross weight | 2.8 kg |
| Net weight | 2.16 kg |
