WDR-245-F-EN-10
Kod EAN: 4007754429541
PA ceiling loudspeaker with EN 54-24 certification. 100 V transmission technology High-performance full-range speaker (20 cm) with very high characteristic sound pressure level (98 dB/1 W/1 m) Metal housing with metal protective grille Fire pot Qui...
WDR-245-F-EN-10

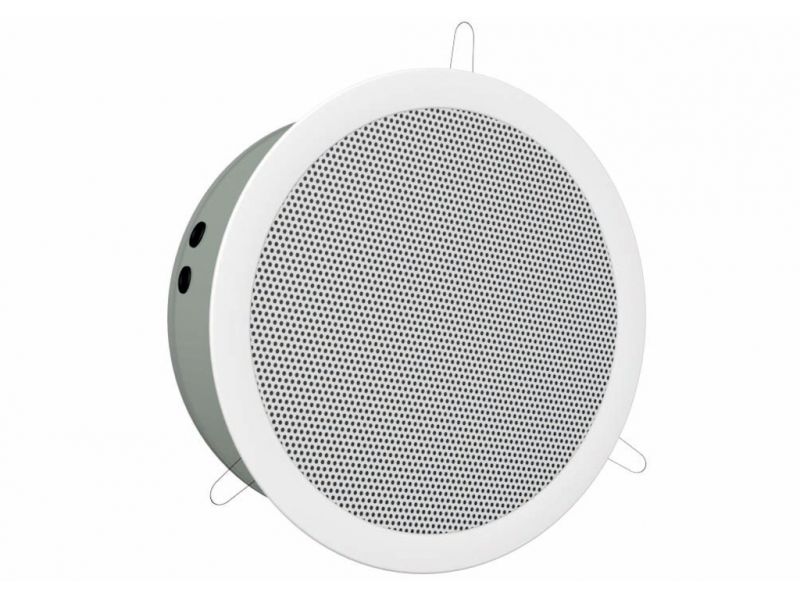

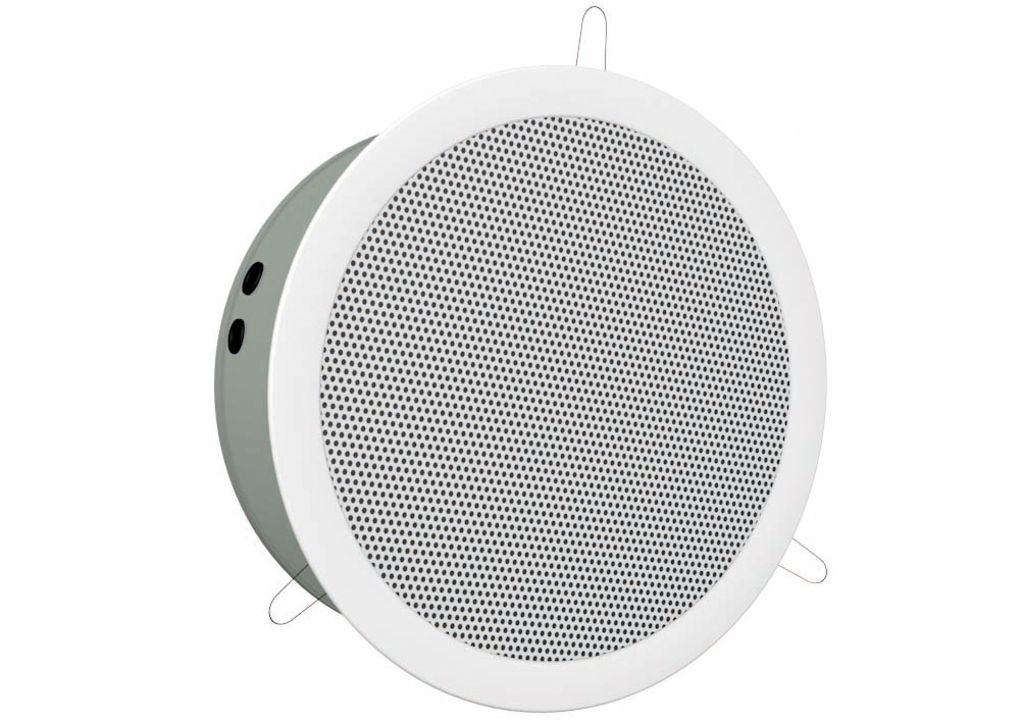

PA ceiling loudspeaker
with EN 54-24 certification.
- 100 V transmission technology
- High-performance full-range speaker (20 cm) with very high characteristic sound pressure level (98 dB/1 W/1 m)
- Metal housing with metal protective grille
- Fire pot
- Quick mounting device
- 3 power taps via WAGO terminal
- Ball impact resistance test according to DIN 18 032, part 3
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametre
| Transmission technology | 100 V |
| Frequency range | 70-19,000 Hz |
| Power rating (RMS) | 10/5/2.5 W |
| SPL | 98 dB (1 W/1 m) 81 dB (EN, 1 W/4 m) |
| Maximálny menovitý SPL | 105 dB (1 m) 92 dB (EN, 4 m) |
| Uhol vyžarovania, horizontálny | 180° (500 Hz) 180° (1 kHz) 90° (2 kHz) 49° (4 kHz) |
| Uhol vyžarovania, vertikálny | 180° (500 Hz) 180° (1 kHz) 90° (2 kHz) 49° (4 kHz) |
| Mounting cutout | Ø 230 mm |
| Dimensions | Ø 252 mm x 105 mm |
| Outside diameter | Ø 252 mm |
| Width | Ø 252 mm |
| Výška | Ø 252 mm |
| Depth | 105 mm |
| Colour | White, RAL 9010 |
| Hmotnosť | 1.5 kg |
| Packing unit | 1 |
| Type of speaker | 200 |
| Packaging dimensions (W x H x L) | 0.27 x 0.27 x 0.115 m |
| Gross weight | 1.7 kg |
| Net weight | 1.6 kg |
