WDR-130-F-EN-10
Kod EAN: 4007754429534
PA ceiling loudspeaker with EN 54-24 certification. 100-volt transmission technology Speaker (13 cm) with high sound pressure and very good transmission range Moisture-protected speaker cone Fire pot Quick mounting device Metal housing with metal p...

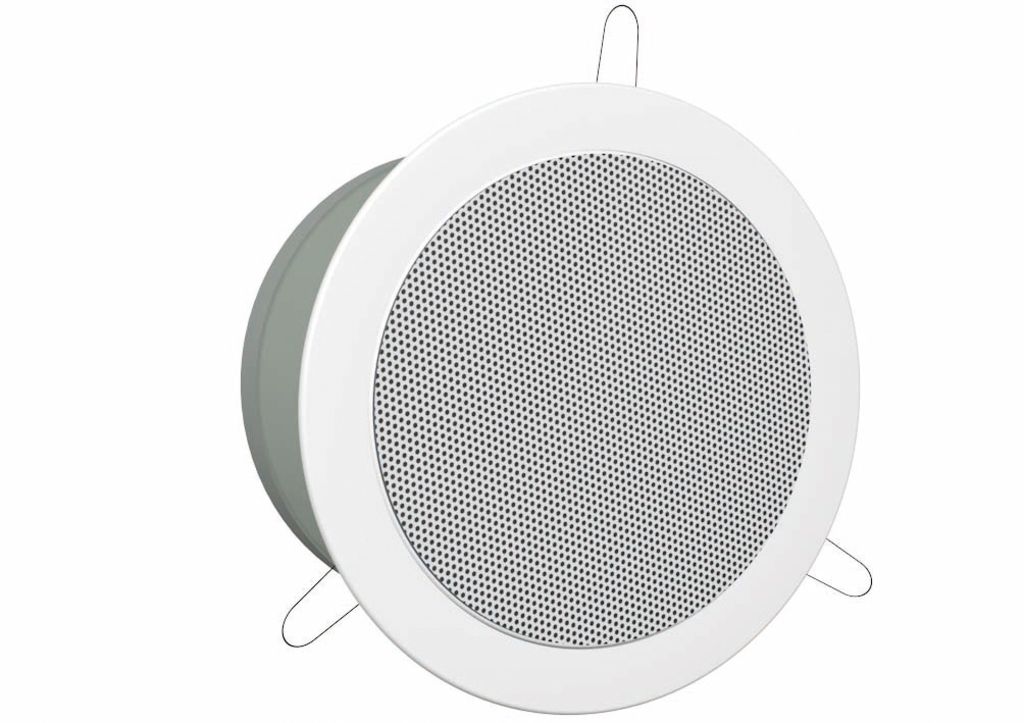

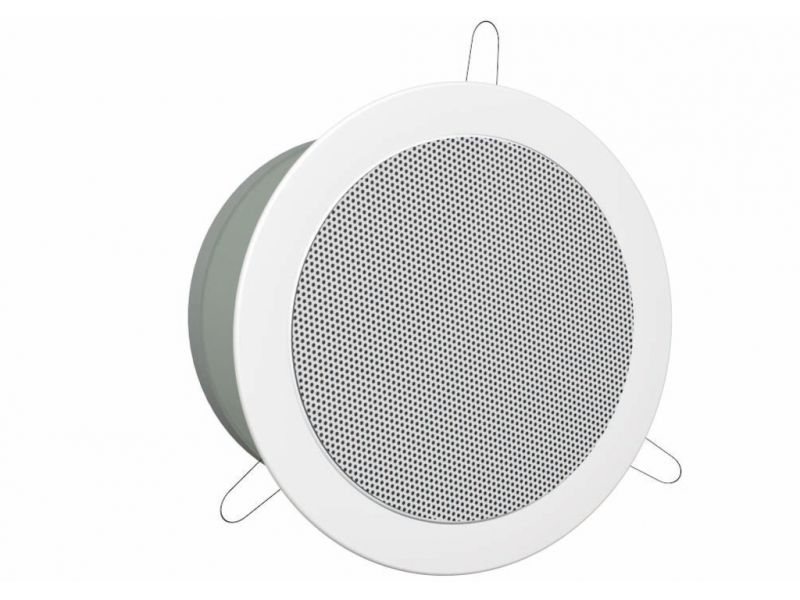

WDR-130-F-EN-10
PA ceiling loudspeaker
with EN 54-24 certification.
- 100-volt transmission technology
- Speaker (13 cm) with high sound pressure and very good transmission range
- Moisture-protected speaker cone
- Fire pot
- Quick mounting device
- Metal housing with metal protective grille
- 3 power taps via WAGO terminal
- Ball impact resistance test according to DIN 18 032, part 3
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametre
| Transmission technology | 100 V |
| Frequency range | 80-19,000 Hz |
| Power rating (RMS) | 10/5/2.5 W |
| SPL | 93 dB (1 W/1 m) 78 dB (EN, 1 W/4 m) |
| Maximálny menovitý SPL | 103 dB (1 m) 88 dB (EN, 4 m) |
| Uhol vyžarovania, horizontálny | 180° (500 Hz) 180° (1 kHz) 155° (2 kHz) 76° (4 kHz) |
| Uhol vyžarovania, vertikálny | 180° (500 Hz) 180° (1 kHz) 155° (2 kHz) 76° (4 kHz) |
| Mounting cutout | Ø 140-150 mm |
| Dimensions | Ø 167 mm x 90 mm |
| Outside diameter | Ø 167 mm |
| Width | Ø 167 mm |
| Výška | Ø 167 mm |
| Depth | 90 mm |
| Colour | white, RAL 9010 |
| Hmotnosť | 1.1 kg |
| Packing unit | 1 |
| Type of speaker | 130 |
| Packaging dimensions (W x H x L) | 0.187 x 0.187 x 0.090 m |
| Gross weight | 1.2 kg |
| Net weight | 1.1 kg |
