WDE-130-N
Kod EAN: 4007754429701
PA ceiling speaker, 4 Ω Very good transmission range Speaker (13 cm) with high sound pressure and very good transmission range Moisture-proof speaker cone Quick-mounting device Metal housing with metal protective grille Connection via pressure clamps...

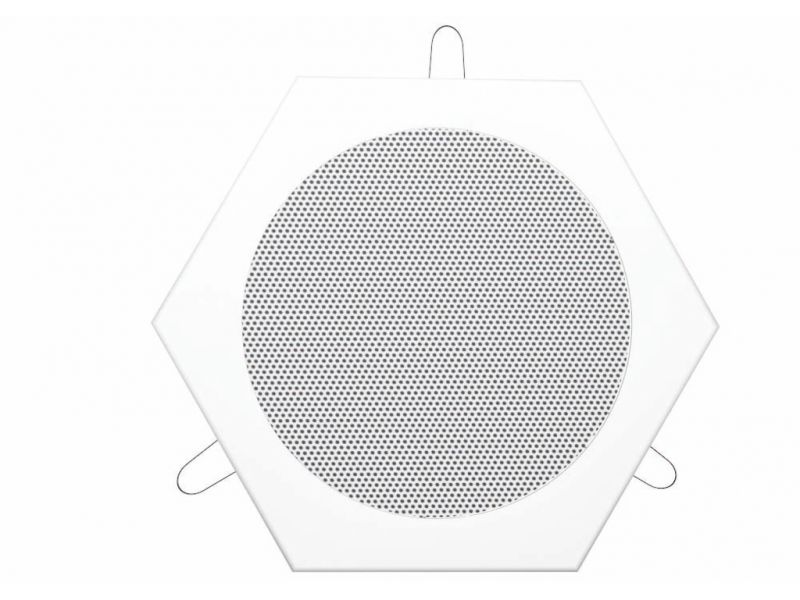

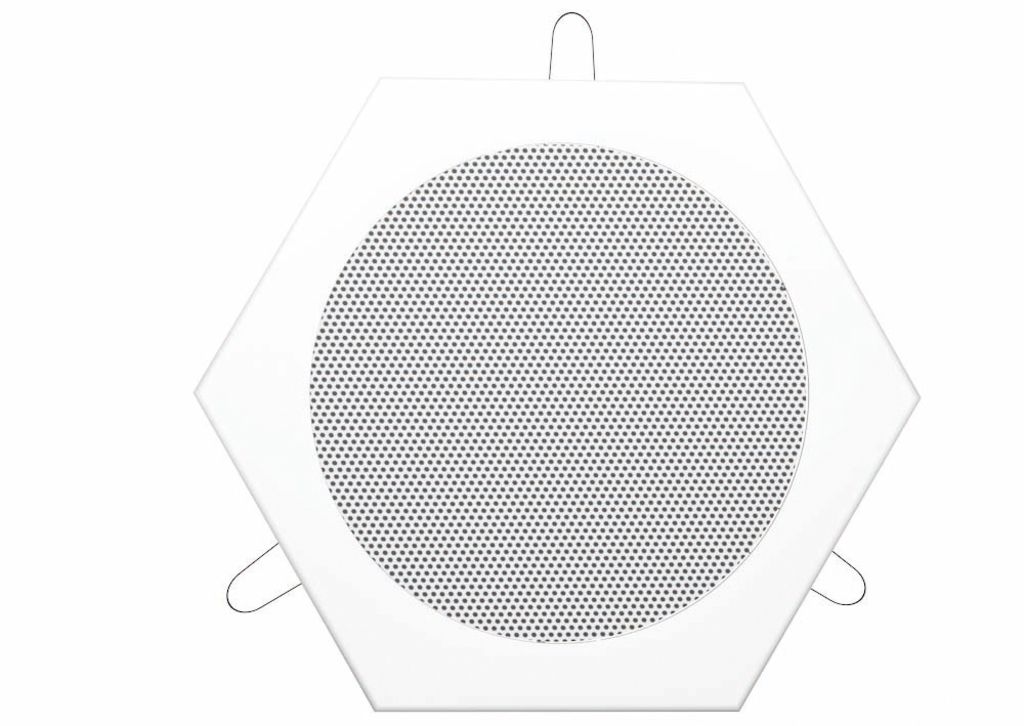

WDE-130-N
PA ceiling speaker, 4 Ω
- Very good transmission range
- Speaker (13 cm) with high sound pressure and very good transmission range
- Moisture-proof speaker cone
- Quick-mounting device
- Metal housing with metal protective grille
- Connection via pressure clamps
- Ball-proof in accordance with DIN 18 032, part 3
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametre
| Impedancia (Z) | 4 Ω |
| Transmission technology | cable |
| Frequency range | 60-20,000 Hz |
| Power rating (RMS) | 15 W |
| SPL | 94 dB/W/m |
| Maximálny menovitý SPL | 105 dB |
| Uhol vyžarovania, horizontálny | 180° |
| Uhol vyžarovania, vertikálny | 180° |
| Mounting cutout | Ø 140-150 mm |
| Dimensions | Ø 168 mm x 48 mm |
| Outside diameter | Ø 168 mm |
| Width | Ø 168 mm |
| Výška | Ø 168 mm |
| Depth | 48 mm |
| Colour | white, RAL 9010 |
| Protective class | IP54 |
| Hmotnosť | 0.6 kg |
| Packing unit | 1 |
| Packaging dimensions (W x H x L) | 0.187 x 0.187 x 0.075 m |
| Gross weight | 0.8 kg |
| Net weight | 0.7 kg |
