WDR-130-CX10
Kod EAN: 4007754430271
PA ceiling speaker 100 V transmission technology 2-way speaker system (13 cm) High sound quality and well-balanced frequency response, distortion-free transmission of 50 Hz signals also possible Quick-mounting device Metal housing with metal protecti...
71,35 € brutto
(inkl. 23% DPH)
58,01 € netto

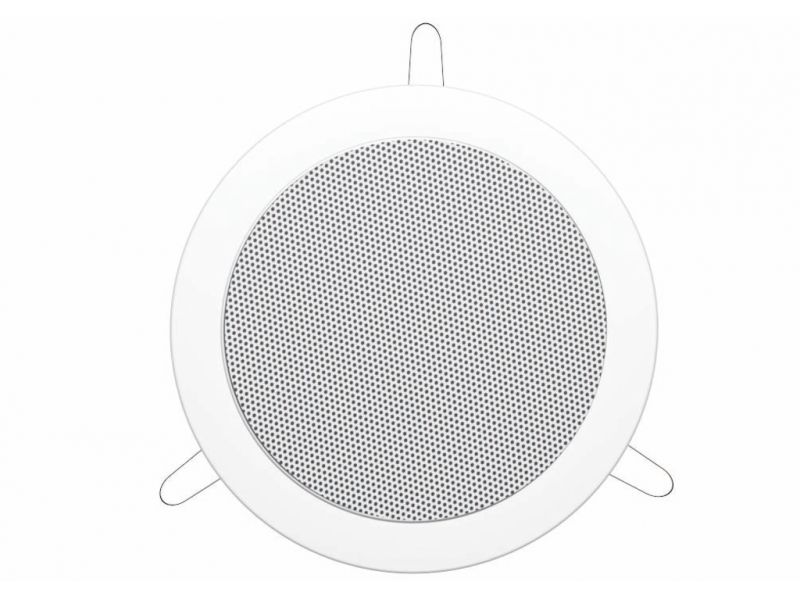

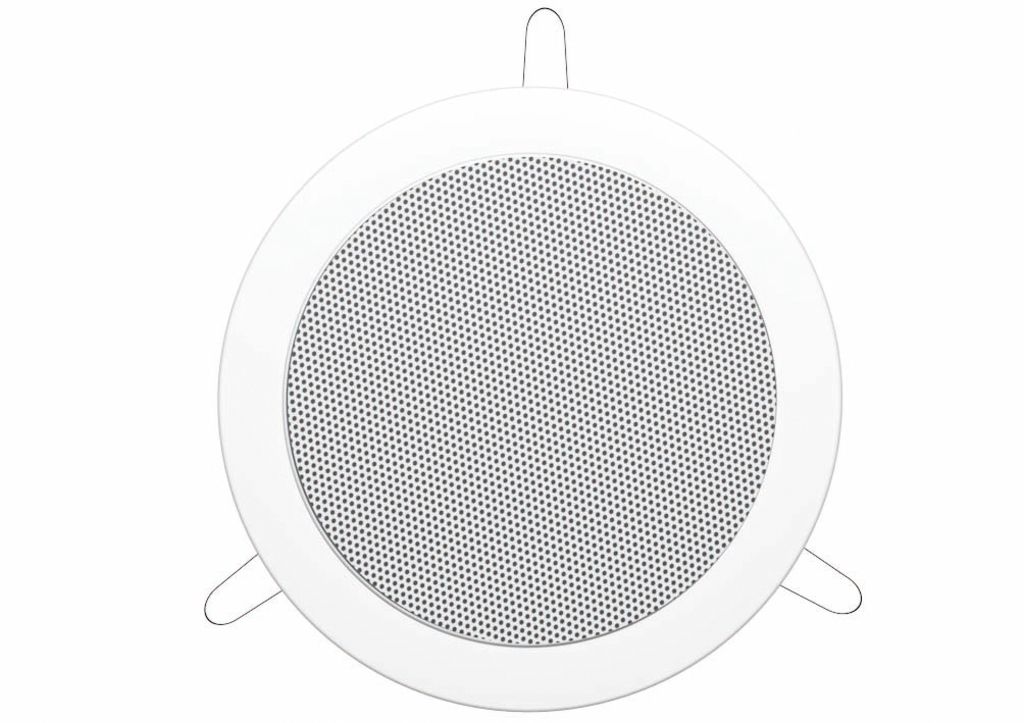

WDR-130-CX10
PA ceiling speaker
- 100 V transmission technology
- 2-way speaker system (13 cm)
- High sound quality and well-balanced frequency response, distortion-free transmission of 50 Hz signals also possible
- Quick-mounting device
- Metal housing with metal protective grille
- 3 power taps via pressure clamps
- Ball-proof in accordance with DIN 18 032, part 3
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametre
| Transmission technology | 100 V |
| Frequency range | 50-22,000 Hz |
| Power rating (RMS) | 10/5/2.5 W |
| SPL | 91 dB/W/m |
| Maximálny menovitý SPL | 101 dB |
| Uhol vyžarovania, horizontálny | 180° |
| Uhol vyžarovania, vertikálny | 180° |
| Mounting cutout | Ø 140-150 mm |
| Dimensions | Ø 167 mm x 98 mm |
| Outside diameter | Ø 167 mm |
| Width | Ø 167 mm |
| Výška | Ø 167 mm |
| Depth | 98 mm |
| Colour | white, RAL 9010 |
| Hmotnosť | 1.4 kg |
| Packing unit | 1 |
| Type of speaker | 130 |
| Packaging dimensions (W x H x L) | 0.187 x 0.187 x 0.1 m |
| Gross weight | 1.5 kg |
| Net weight | 1.4 kg |
