MPS-8K
Kod EAN: 4007754275315
Extension keypad for MPS-8Z
Novinky
PA-M1WP
Kod EAN: 4007754273380
Wall module, for local insertion of audio signals to PA matrix mixing amplifier PA-M224 or PA-M412. Intended application: volume control of 1 zone, local insertion of audio signals 2 x RCA jack for line signals Microphone connection via 3-pole XLR...
35,00 € brutto
(inkl. 20% DPH)
29,17 € netto

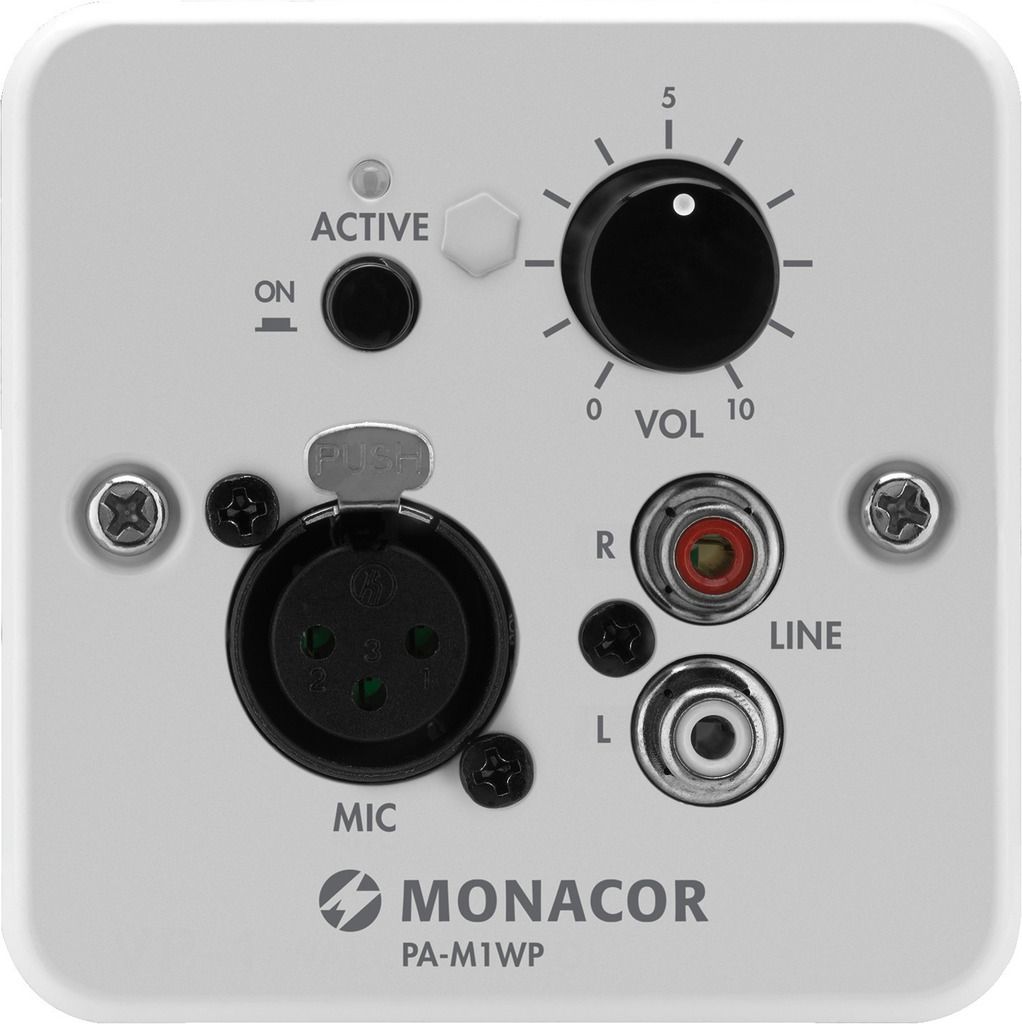

PA-M1WP
Wall module,
for local insertion of audio signals to PA matrix mixing amplifier PA-M224 or PA-M412.
- Intended application: volume control of 1 zone, local insertion of audio signals
- 2 x RCA jack for line signals
- Microphone connection via 3-pole XLR jack
- 14 V phantom power, to be activated as required
- Volume control
- Signal selector button with LED indication which allows a priority circuit of locally inserted audio signals (MIC or LINE) in the respective zone
- Connection to PA-M224 or PA-M412 and power supply via RJ45 jack and Cat. 5 network cable (copper, supplied w/o cable), cable length up to 200 m
- Matching flush-mounted housing ATT-300C is available at option
Parametre
| Description | wall module |
| Type | remote control of 1 zone |
| Colour | white |
| Material | plastic |
| Suitable for | PA-M224, PA-M412 |
| Power supply | via PA-M224, PA-M412 |
| Dimensions | 80 x 80 x 50 mm |
| Weight | 90 g |
| Connections | 1 x XLR (microphone), 1 x RCA L/R (line), 1 x RJ45 |
| Other features | 14 V phantom power |
| Packing unit | 1 |
