BS-120

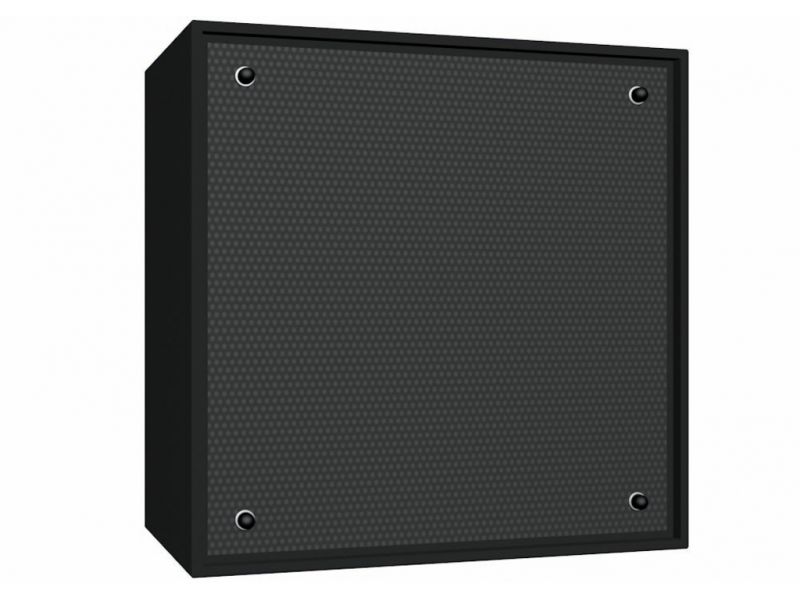

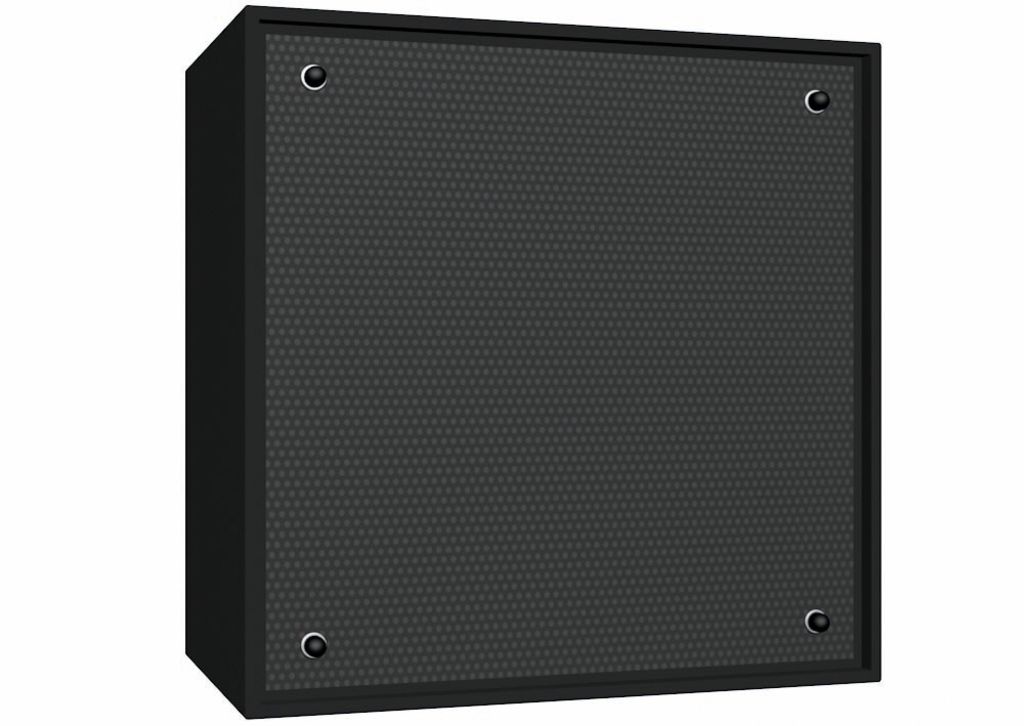

Ceiling cabinet PA system
for mounting on or suspending from ceilings or ceiling constructions
  • High-quality transmission of speech and music
  • 100 V transmission technology via audio transformer with 3 power taps 120/60/30 W
  • 4 x 2-way speaker (8 cm) with additional high-range horn
  • Excellent efficiency, superb sound characteristics and optimised radiation properties due to 4 speakers so that it is possible to achieve a defined directionality even within the critical mid-range
  • Particularly suited for ceiling PA in surroundings with a long reverberation time, high ceilings and a high ambient noise level
  • Black laquered MDF cabinet with mounting eyelets for suspension by steel cables
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametre

Active/passive passive
Transmission technology 100 V
Total power rating 120 W
Power rating (RMS) 120/60/30 W
Frequency range 80-22,000 Hz
System 2-way
Počet reproduktorov 4
Speaker size 8 cm
SPL 102 dB/W/m
Maximálny menovitý SPL 123 dB
Radiation angle/beam angle H85°/V85° (1 kHz) H60°/V60° (2 kHz) H50°/V50° (4 kHz)
Uhol vyžarovania, horizontálny 85° (1 kHz) 60° (2 kHz) 50° (4 kHz)
Uhol vyžarovania, vertikálny 85° (1 kHz) 60° (2 kHz) 50° (4 kHz)
Housing material MDF
Colour Black, RAL 9005
Mounting device mounting eyelets
Dimensions 500 x 500 x 300 mm
Width 500 mm
Výška 500 mm
Depth 300 mm
Hmotnosť 22.5 kg
Vstupy Pressure terminals
Packaging dimensions (W x H x L) 0.6 x 0.4 x 0.45 m
Gross weight 24 kg
Net weight 23 kg

Na stiahnutie

Produktová karta BS-120
