TR-6
Kod EAN: 4007754430073
Weatherproof horn speaker 100 V transmission technology 100 V transformer with power taps on the cable 6/3/1.5 W Integrated high-pass filter for sound and stability optimisation Universally suitable for indoor and outdoor use IP54 certified White AB...
92,26 € brutto
(inkl. 23% DPH)
75,01 € netto

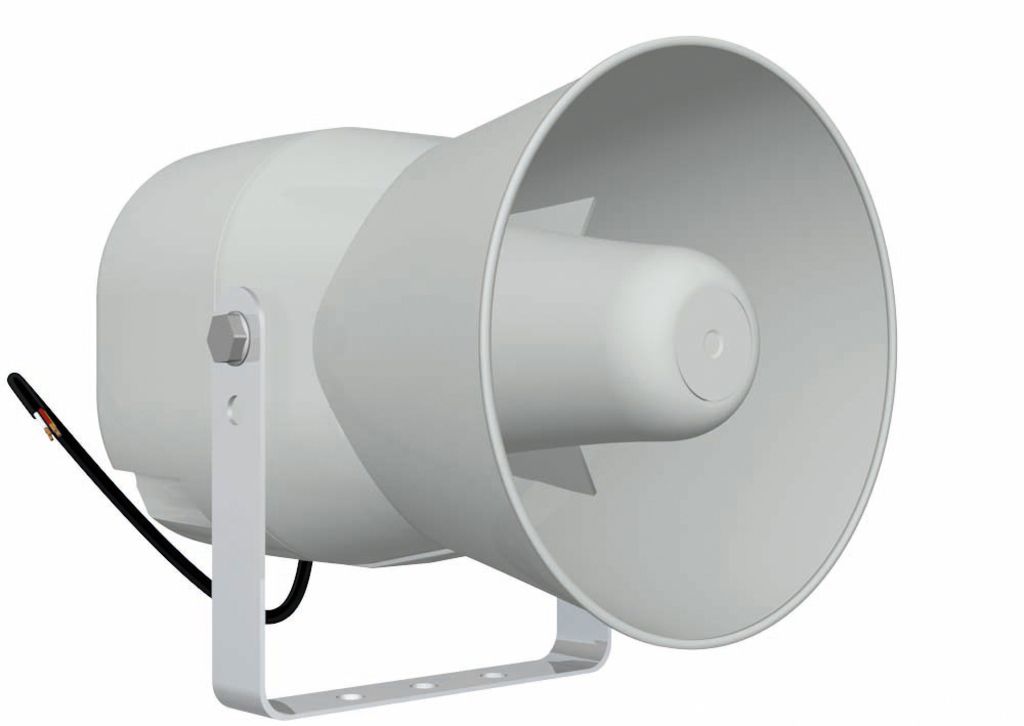

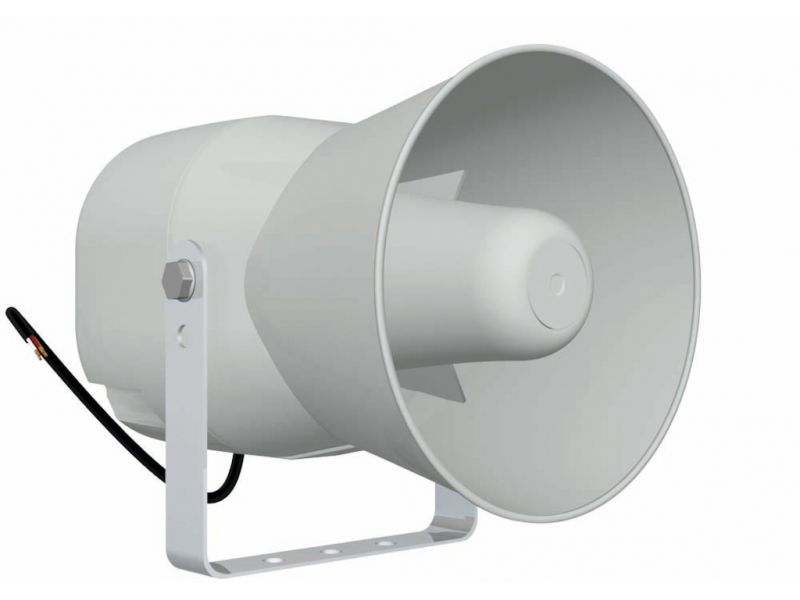

TR-6
Weatherproof horn speaker
- 100 V transmission technology
- 100 V transformer with power taps on the cable 6/3/1.5 W
- Integrated high-pass filter for sound and stability optimisation
- Universally suitable for indoor and outdoor use
- IP54 certified
- White ABS housing (self-extinguishing, complies with UL94V0 standard)
- Connection via 4-core cable (length 1.5 m)
- Mounting bracket included
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametre
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 6 W |
| Power rating (RMS) | 6/3/1.5 W |
| Frequency range | 500-13,000 Hz |
| Počet reproduktorov | 1 |
| SPL | 106 dB/W/m |
| Maximálny menovitý SPL | 114 dB |
| Radiation angle/beam angle | 90° |
| Uhol vyžarovania, horizontálny | 90° |
| Uhol vyžarovania, vertikálny | 90° |
| Housing material | ABS |
| Colour | light grey, RAL 7035 |
| Mounting device | mounting bracket |
| Protection class | IP54 |
| Admiss. ambient temp. | -40 °C to +70 °C |
| Dimensions | Ø 130 mm x 175 mm |
| Width | Ø 130 mm |
| Výška | Ø 130 mm |
| Depth | 175 mm |
| Hmotnosť | 1.4 kg |
| Vstupy | cable connection |
| Ďalšie funkcie | weatherproof |
| Packaging dimensions (W x H x L) | 0.145 x 0.145 x 0.209 m |
| Gross weight | 1.5 kg |
| Net weight | 1.4 kg |
