RL-6
Kod EAN: 4007754429961
PA pendant sound projector for ceiling mounting 100 transmission technology Full range speaker (13 cm) with high sound pressure and excellent frequency range 100 V transformer with power taps on the cable 6/3/1.5 W White aluminium housing with prot...

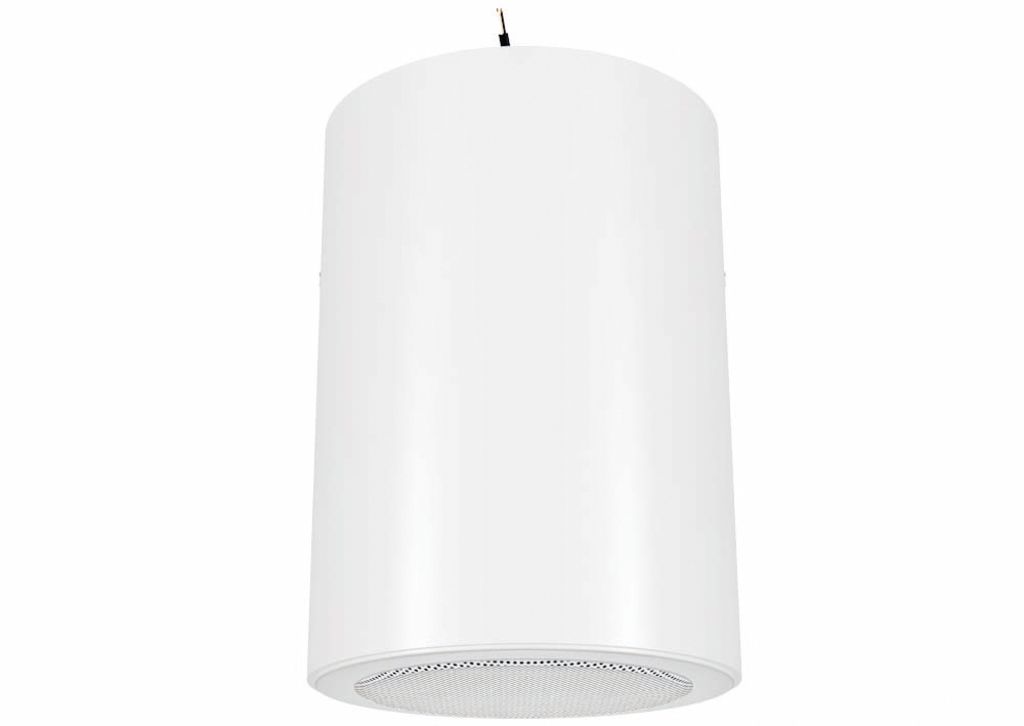

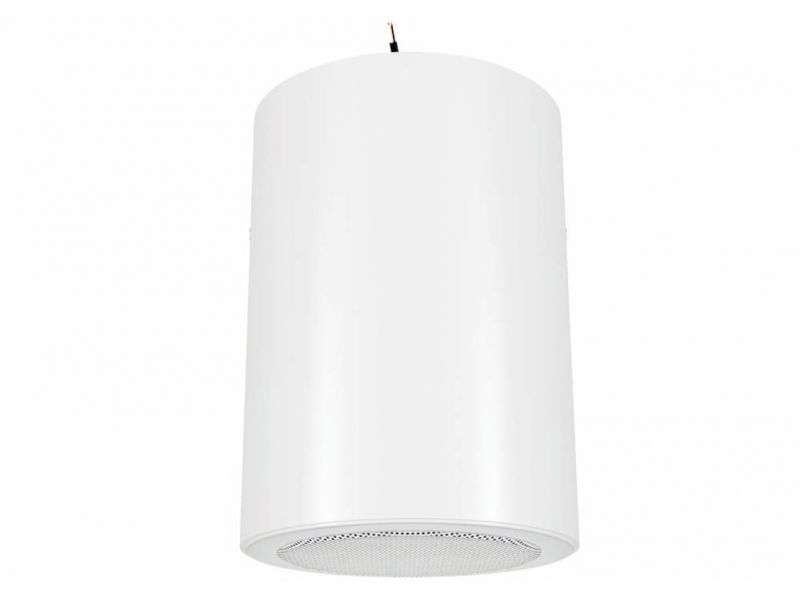

RL-6
PA pendant sound projector
for ceiling mounting
- 100 transmission technology
- Full range speaker (13 cm) with high sound pressure and excellent frequency range
- 100 V transformer with power taps on the cable 6/3/1.5 W
- White aluminium housing with protective grille
- Connection via 4-core cable (length: 3 m)
- Supplied with canopy
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametre
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 6 W |
| Power rating (RMS) | 6/3/1.5 W |
| Frequency range | 70-19,000 Hz |
| Full range speaker | 13 cm |
| Počet reproduktorov | 1 |
| Speaker size | 13 cm (5") |
| SPL | 93 dB/W/m |
| Maximálny menovitý SPL | 101 dB |
| Radiation angle/beam angle | 130° |
| Uhol vyžarovania, horizontálny | 130° |
| Uhol vyžarovania, vertikálny | 130° |
| Housing material | aluminium |
| Colour | white, RAL 9010 |
| Mounting device | pendant suspension |
| Dimensions | Ø 144 mm x 210 mm |
| Width | Ø 144 mm |
| Výška | Ø 144 mm |
| Depth | 210 mm |
| Hmotnosť | 2.6 kg |
| Vstupy | cable connection |
| Packaging dimensions (W x H x L) | 0.175 x 0.175 x 0.267 m |
| Gross weight | 2.7 kg |
| Net weight | 2.6 kg |
