RAPTOR-6
Kod EAN: 4007754170122
Výkonný kompaktný subwoofer, 100 W, 4 Ω Inštalácia subwoofera je možná vo veľmi malom priestore 18 cm (6½") kompaktný basový reproduktor Rýchla a prekvapivo hlboká reprodukcia basov s rovnako dobrou úrovňou stability v malých skrinkách Vysokovýkonný ki...
173,00 € brutto
(inkl. 20% DPH)
144,17 € netto

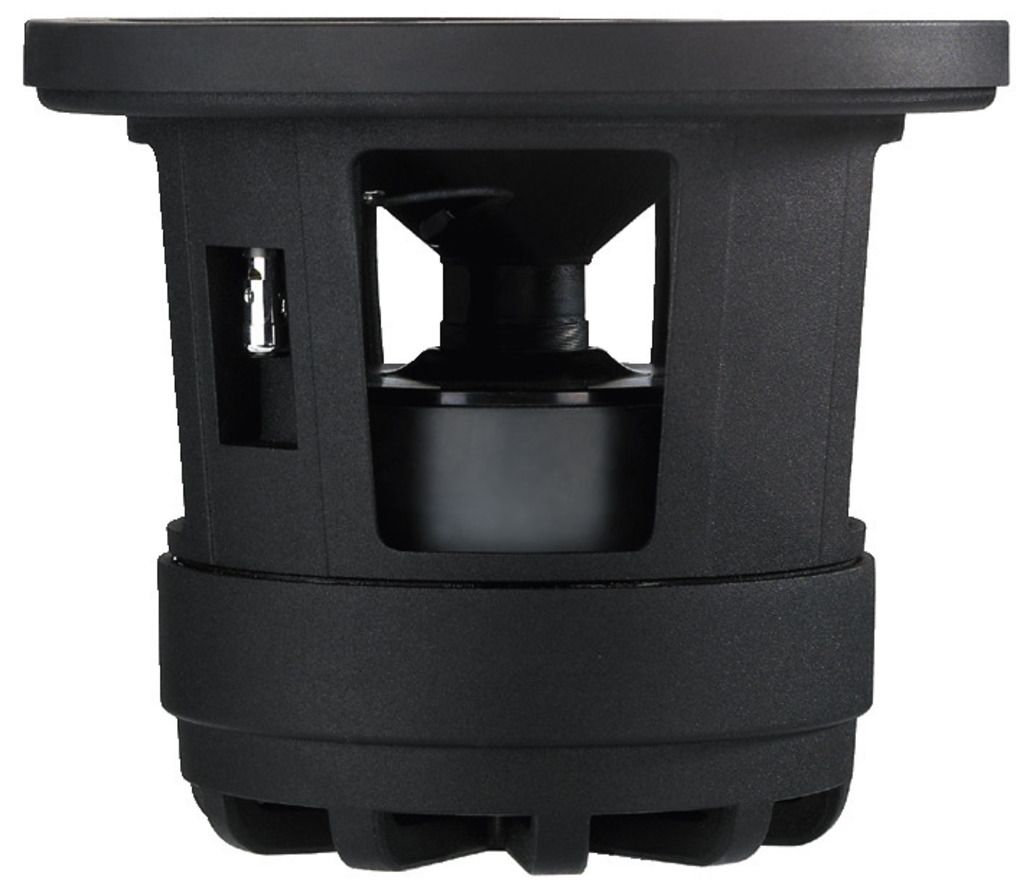

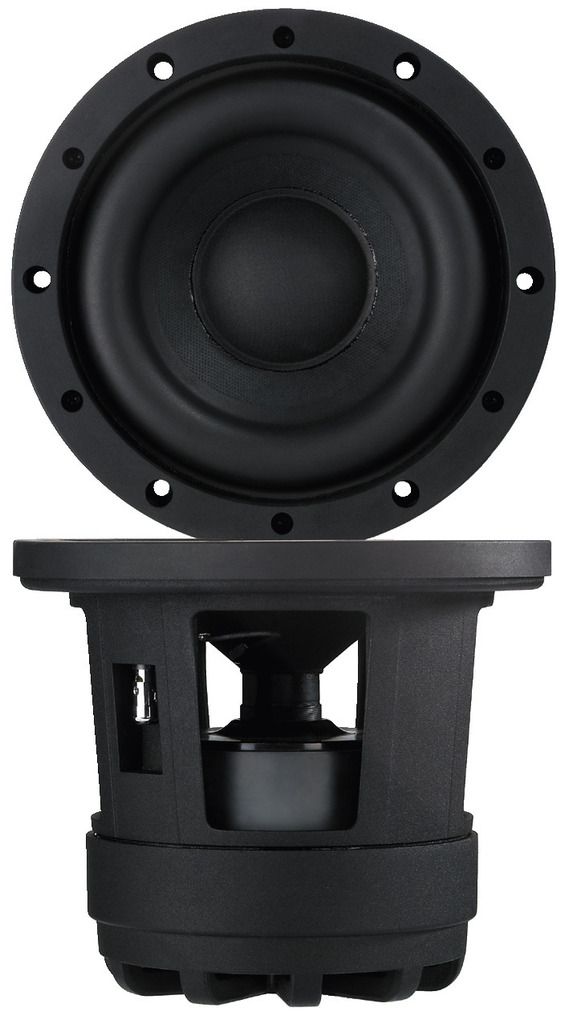

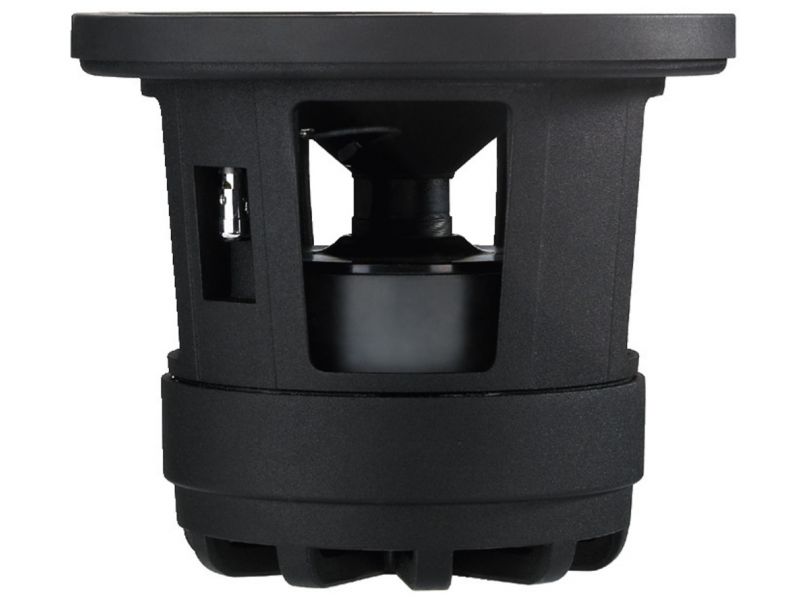

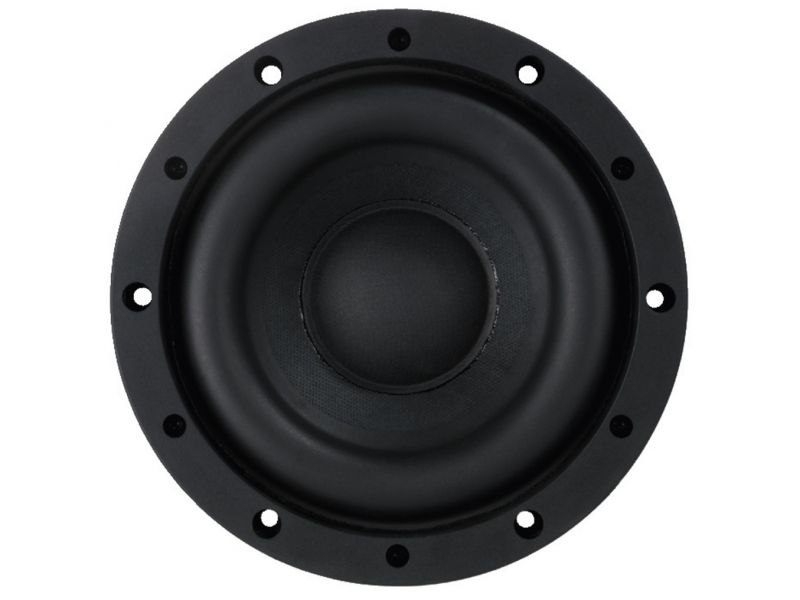

RAPTOR-6
Výkonný kompaktný subwoofer, 100 W, 4 Ω
- Inštalácia subwoofera je možná vo veľmi malom priestore
- 18 cm (6½") kompaktný basový reproduktor
- Rýchla a prekvapivo hlboká reprodukcia basov s rovnako dobrou úrovňou stability v malých skrinkách
- Vysokovýkonný kickbasový reproduktor
- Vďaka ideálnej rovnováhe medzi stabilitou pruženia a dlhou exkurziou sa dosahuje dokonalá odozva v kompletnom rozsahu basov
Klang+Ton 02/2016“An audio-visual PA solution: the readers project of a sound bar with 2 x RAPTOR-6 and 2 x SPX-31M from MONACOR. With a width of 150 cm, it is also suitable for larger screens. The depth of 20 cm allows for sufficient stability. It provides a well-balanced, fast and dynamic sound. This design provides a higher dynamic efficiency than most ready-made products available on the market.”
HOBBY HiFi 06/2015“It is almost impossible to get a smaller subwoofer which is still able to provide such a superb deep bass reproduction.”
Parametre
| Impedance (Z) | 4 Ω |

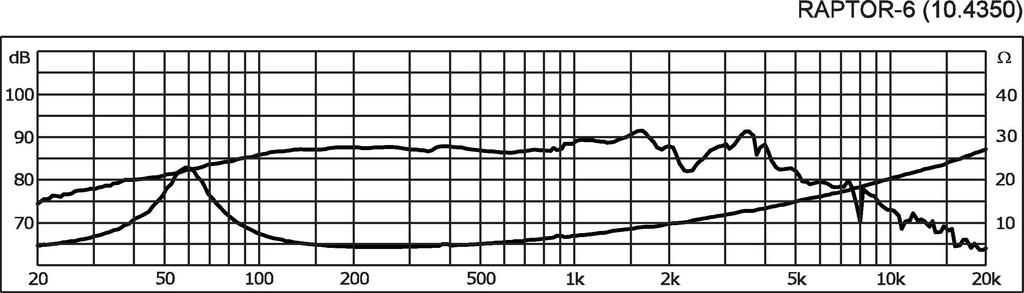

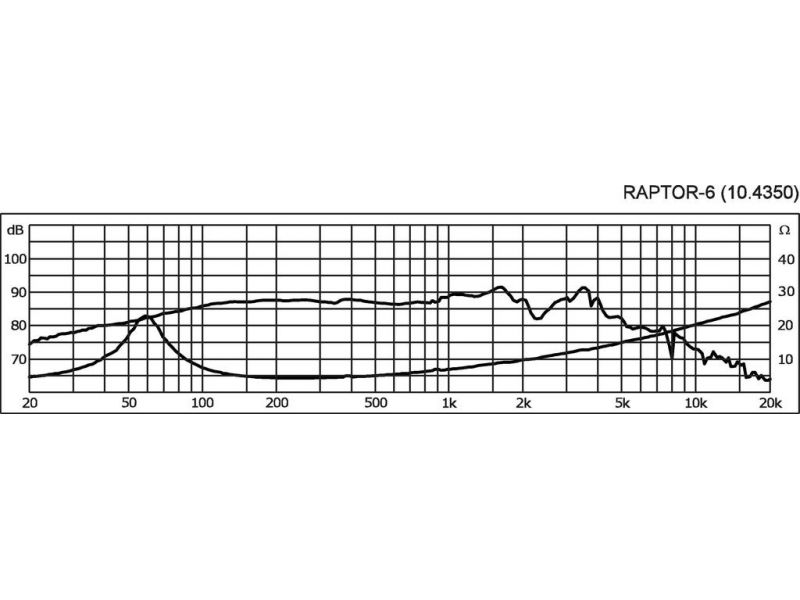

| Frequency range | f3-800 Hz |
| Resonant frequency (fs) | 53 Hz |
| Power rating (RMS) | 100 W |
| Peak music power output (MAX) | 300 W |
| SPL | 88 dB/W/m |
| Suspension compl. (Cms) | 0.38 mm/N |
| Moving mass (Mms) | 23 g |
| Mech. Q factor (Qms) | 2.2 |
| Electr. Q factor (Qes) | 0.43 |
| Total Q factor (Qts) | 0.36 |
| Equivalent volume (Vas) | 6.9 l |
| DC resistance (Re) | 3.4 Ω |
| Force factor (BxL) | 7.60 Tm |
| Voice coil induct. (Le) | 0.6 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 9 mm |
| Eff. cone area (Sd) | 113 cm2 |
| Magnet weight | 850 g |
| Magnet diameter | Ø 133 mm |

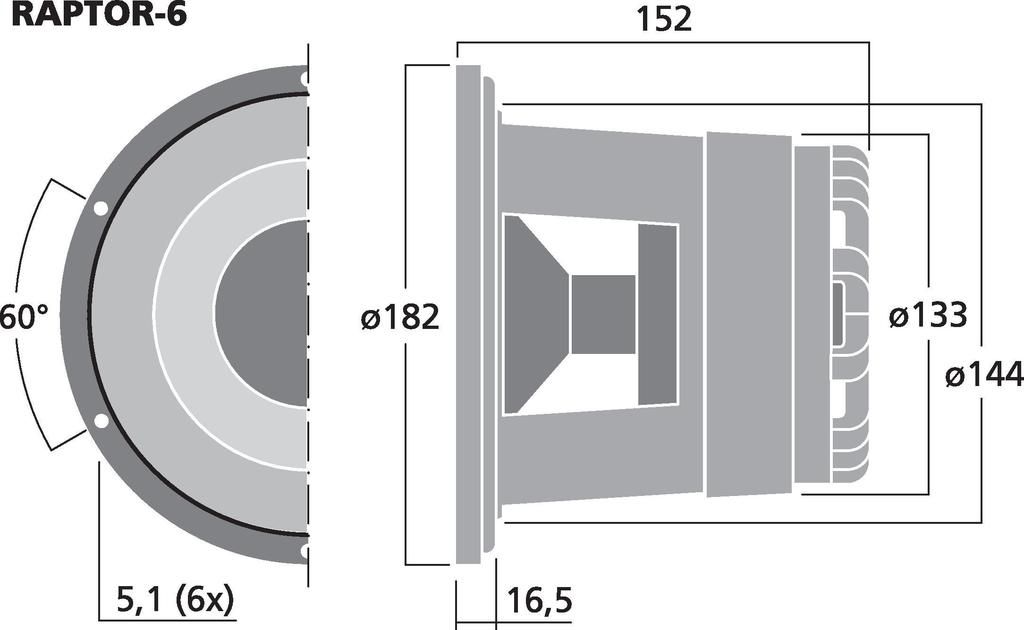

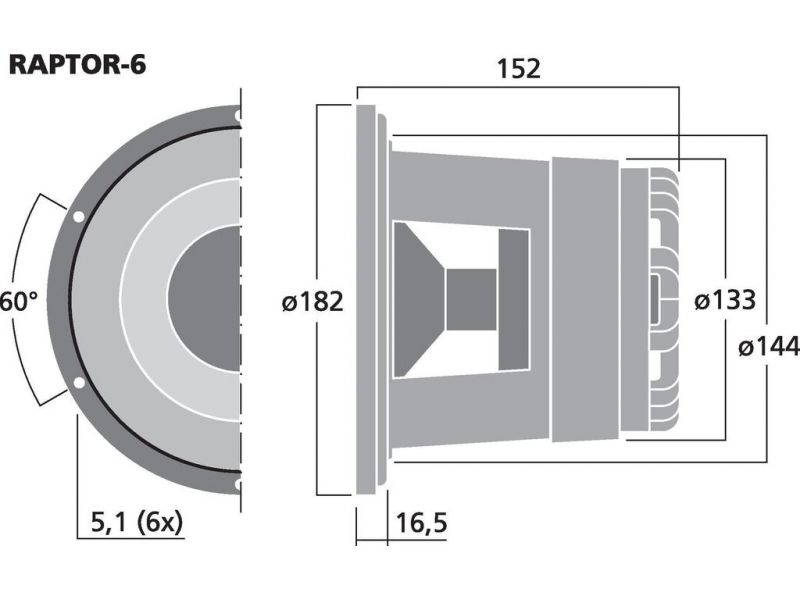

| Mounting cutout | Ø 144 mm |
| Mounting depth | 135.5 mm |
| Dimensions | Ø 182 mm x 152 mm |
| Outside diameter | Ø 182 mm |
| Width | Ø 182 mm |
| Depth | 152 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.345 kg |
| Packing unit | 1 |
| Type of speaker | 6" |
| Packing dimensions (W x H x L) | 0.205 x 0.195 x 0.205 m |
| Gross weight | 2.705 kg |
| Net weight | 2.345 kg |
